Outdoor Stainless Steel Electrical Distribution Cabinet

Overview

As a multi-functional outdoor distribution equipment, this product can serve as an electrical distribution cabinet, power cabinet, and

industrial distribution switchboard. Widely used in outdoor power distribution and municipal lighting power management, its stainless

steel body resists rain, dust, and temperature fluctuations—common outdoor factors. Additionally, it is a customized power distribution

board adjustable for different outdoor power demands. The 3 phase electrical panel ensures balanced power distribution, while the

mcb panel board offers reliable circuit protection, making it a core component of the outdoor power network.

Core Components and Features

Circuit Breaker:

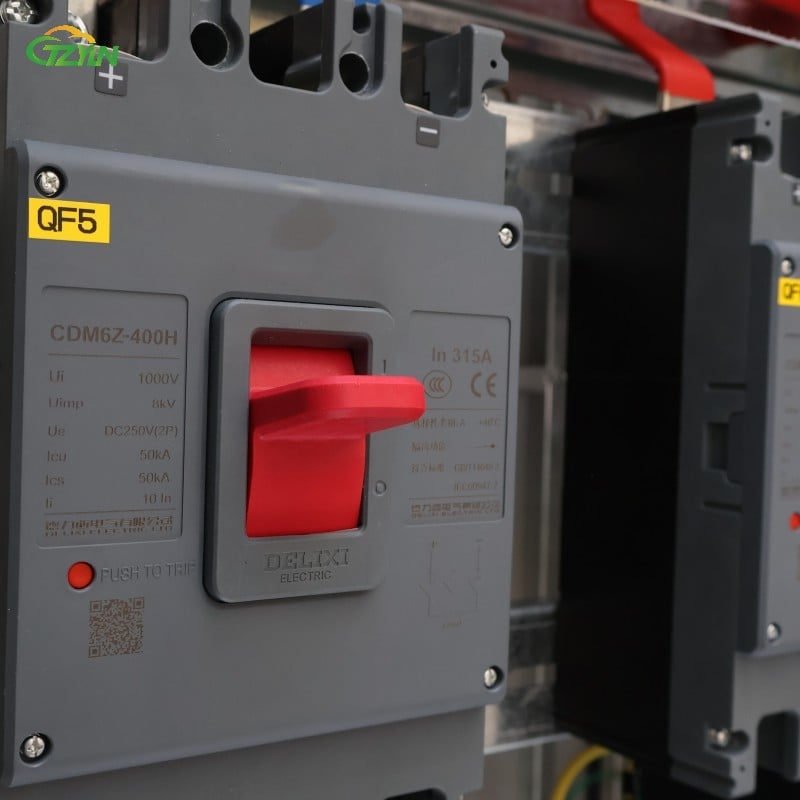

Equipped with circuit breakers like the Delixi CDM6Z series, which have overload and short-circuit protection functions; it also integrates

MCB (Miniature Circuit Breaker) to accurately protect branch circuits, forming a complete mcb panel board protection system.

​

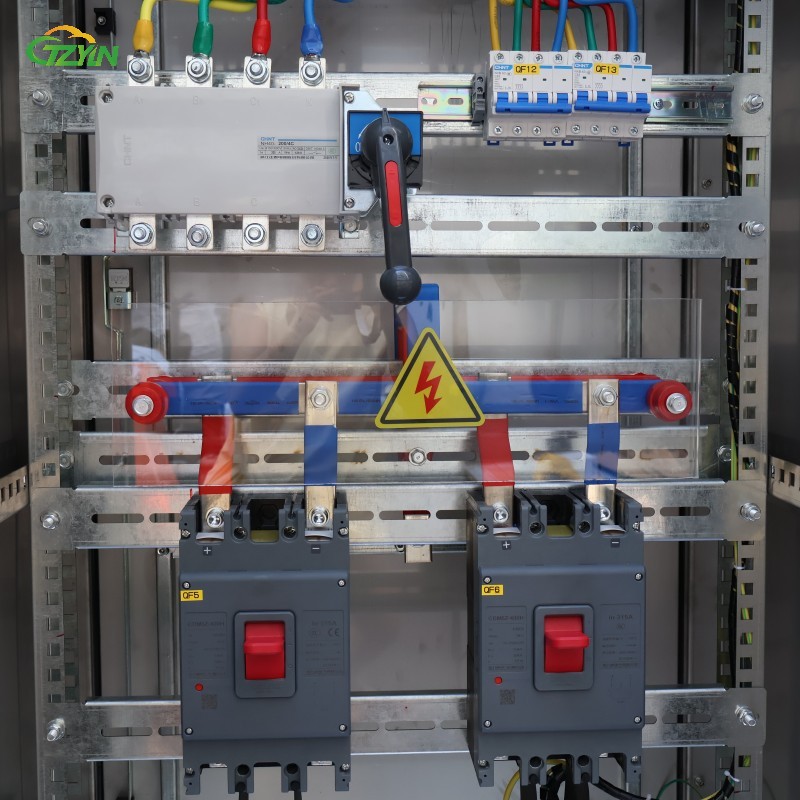

Terminal Blocks and Bus Bars:

Made of high-conductivity materials to ensure stable current transmission, adapting to the multi-circuit requirements of the 3 phase power

distribution system.

​

Design and Compliance

Design:

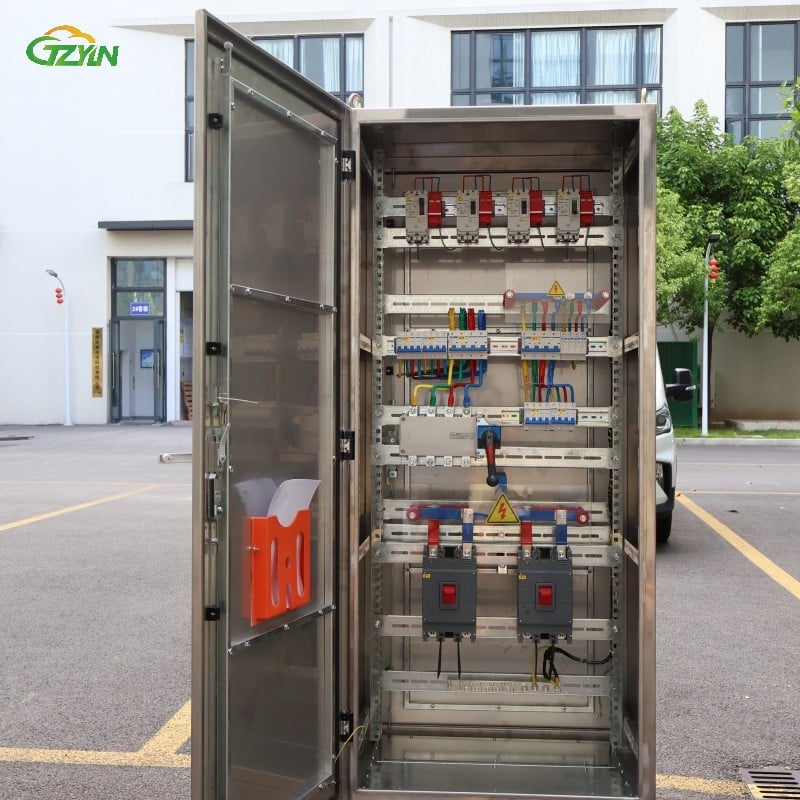

The electrical distribution cabinet adopts a fully enclosed stainless steel shell with an IP65 protection rating, which can effectively isolate

rain, dust, and insects—this is crucial for outdoor use. Its internal layout has been optimized: circuit labels are clear, and components are

arranged to facilitate heat dissipation, avoiding overheating in high-temperature outdoor environments. In addition, the equipment is

equipped with a lockable cabinet door to prevent unauthorized access and protect the internal 3 phase electrical panel and mcb panel board.

Compliance:

The product strictly complies with international standards such as VDE and local municipal electrical regulations. All components, including

circuit breakers and power distribution modules, have CE and UL certifications. As a professional distribution equipment, it meets the safety

requirements of outdoor power distribution and municipal lighting systems, eliminating the risk of electric leakage or short circuit.

Key Advantages

Comprehensive Protection Functions:

The mcb panel board and surge protector form a dual protection system, which can protect municipal lighting and outdoor circuits from

the impact of overcurrent, short circuit, and lightning strikes.

Flexible Customization Capability:

As a customized power distribution board, it can be adjusted according to specific needs—for example, adding extra circuit slots for the

expanded municipal lighting system or adjusting the rated current for different outdoor loads.

Convenient Maintainability:

The internal labels are clear and the side panels are detachable, allowing staff to quickly inspect the industrial distribution switchboard or

replace components, reducing maintenance downtime.

Parameter

Application Scenarios

Municipal Road Lighting Systems:

Outdoor Public Squares:

For squares equipped with landscape lights, audio systems, and charging piles, this power cabinet is responsible for power distribution

management. As a customized power distribution board, it can adapt to mixed load requirements, providing stable power for public activities

and daily use of square facilities.

​

Municipal Parks:

In the park's electrical system, it supplies power to fountain pumps, lawn lamps, and emergency lights. Its stainless steel material can

resist the humid environment of park green spaces, and the IP65 protection rating prevents equipment damage from rain, ensuring the

reliable operation of park facilities.

​
