Customized Frame Breaker Engine Control Panels for Maldivian Applications

Overview

Designed specifically for the unique power infrastructure challenges of the Maldives,

our Frame Breaker Engine Control Panels—an advanced electrical control panel and electrical distribution panel—combine robust protection features with adaptive design.

As a specialized electric circuit breaker panel, it integrates high-performance frame circuit breakers to withstand tropical marine environments,

providing reliable power management for diesel generators and hybrid renewable energy installations on the Maldivian islands.

This electric circuit breaker panel is engineered to serve as both a critical electrical distribution panel and a precision control hub,

ensuring seamless operation in harsh coastal conditions.

Core Features

Adaptive circuit protection

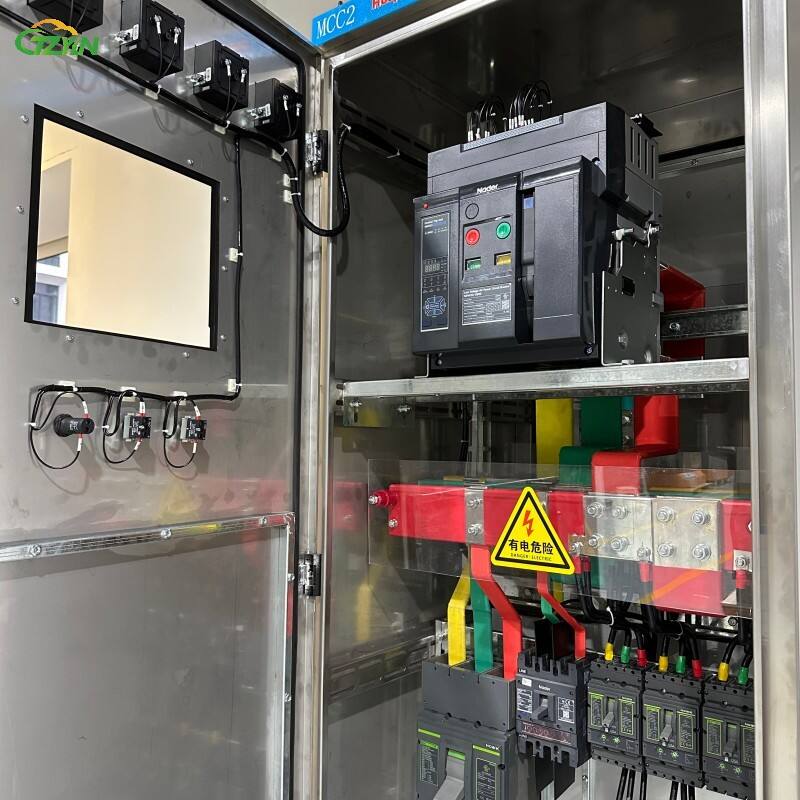

The electrical control panel incorporates frame circuit breakers rated from 160A-4000A, making it a versatile electric circuit breaker panel for diverse load demands.

Its thermal-magnetic trip unit with adjustable settings enhances the electrical distribution panel’s ability to safeguard equipment,

while dual power compatibility supports diesel/solar hybrid systems—key for the Maldives’ shift to renewables.

Marine-grade durability

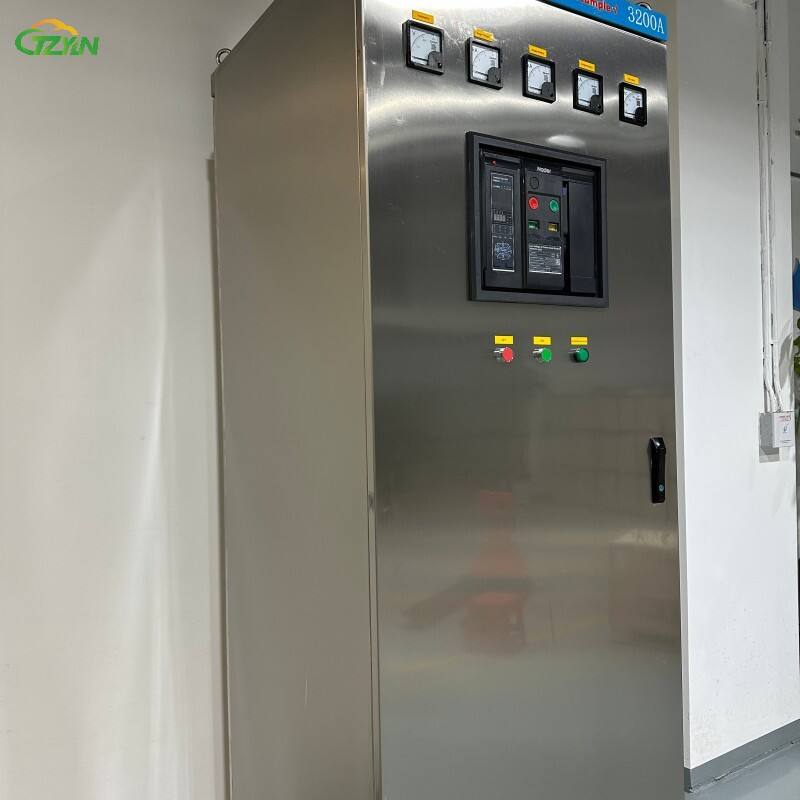

This electrical control panel features a 316L stainless steel housing (IP66/NEMA 4X),

ensuring the electric circuit breaker panel and its frame circuit breakers resist corrosion.

Silver-plated contacts add longevity, and salt spray testing (per MIL-STD-810G)

confirms the electrical distribution panels resilience in marine environments.

Smart grid integration

As a modern electrical control panel, it supports Modbus TCP/IP and BACnet protocols, enabling real-time monitoring. The electric circuit breaker panel’s automatic load shedding—powered by its frame circuit breakers—optimizes microgrid performance, a core function of this advanced electrical distribution panel.

Competitive Advantages

Tropicalized design

The electrical control panel operates in temperatures from -25°C to +70°C,

with anti-fog ventilation to prevent condensation—critical for maintaining the electric circuit breaker panel and frame circuit breakers.

UV-resistant accessories further protect the electrical distribution panel in sunny, coastal settings.

Cost optimization

This electric circuit breaker panel reduces diesel consumption by 18-23% through load optimization,

leveraging its frame circuit breakers to balance power sources. As an efficient electrical distribution panel,

it extends generator life by preventing wet stacking and cuts maintenance costs via predictive diagnostics, making it a cost-effective electrical control panel.

Regulatory compliance

The electrical control panel meets STELCO grid standards and Maldives Energy Authority (MEA) 2030 goals.

Certified as a marine-grade electric circuit breaker panel (DNV GL Type Approval),

its frame circuit breakers and electrical distribution panel design align with global safety norms.

Application Scenarios

Resort microgrid

This electrical control panel integrates 500kW-2MW solar + energy storage systems,

acting as the central electrical distribution panel for seamless switching between generators and renewables.

As a high-capacity electric circuit breaker panel, it powered Finolhu Villas’ 100% solar resort, with frame circuit breakers ensuring stable power flow.

Marine

The electrical control panel serves as a yacht power management system (48V DC to 415V AC),

doubling as a shore-power compatible electric circuit breaker panel—ideal for upgrading Male Marina.

Its frame circuit breakers meet IMO Tier III standards, solidifying its role as a reliable electrical distribution panel.
