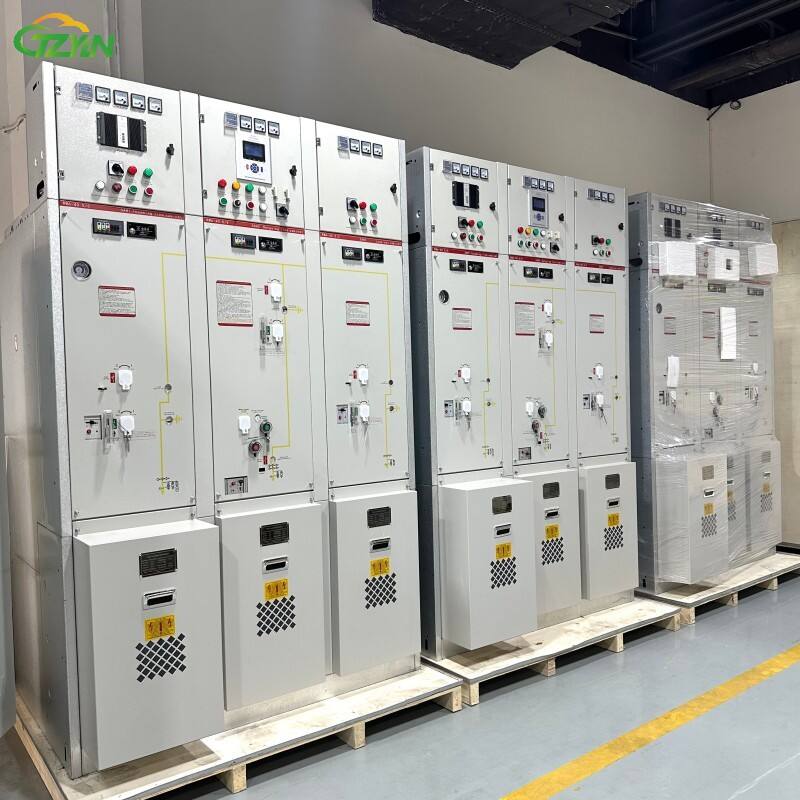

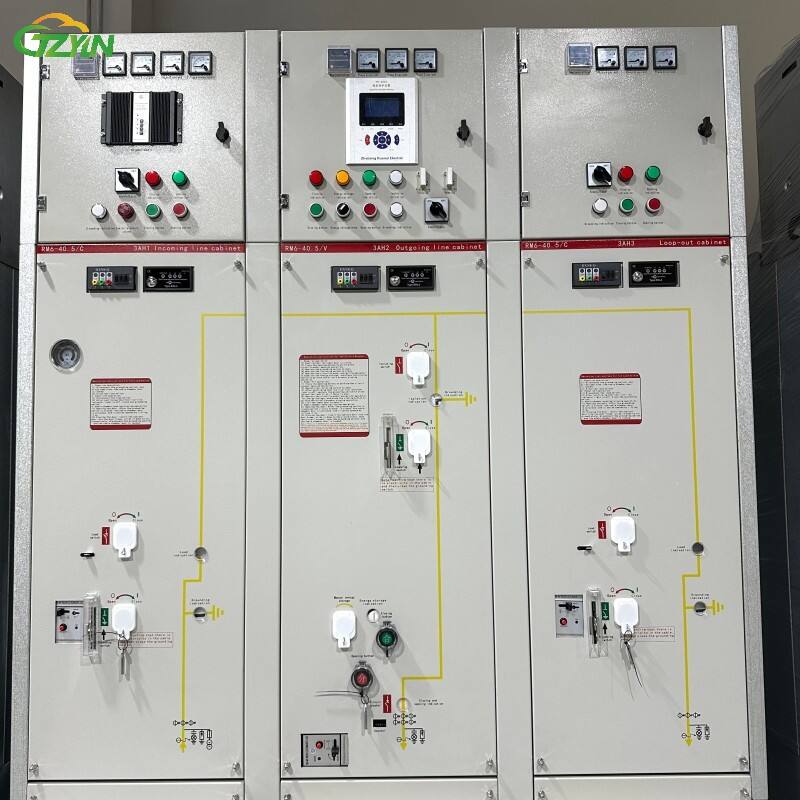

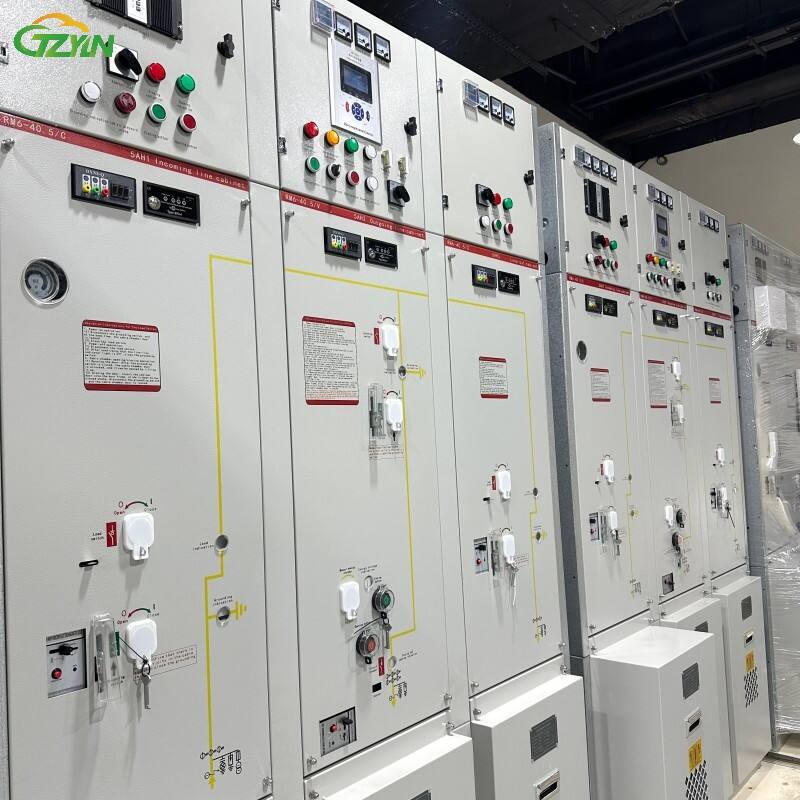

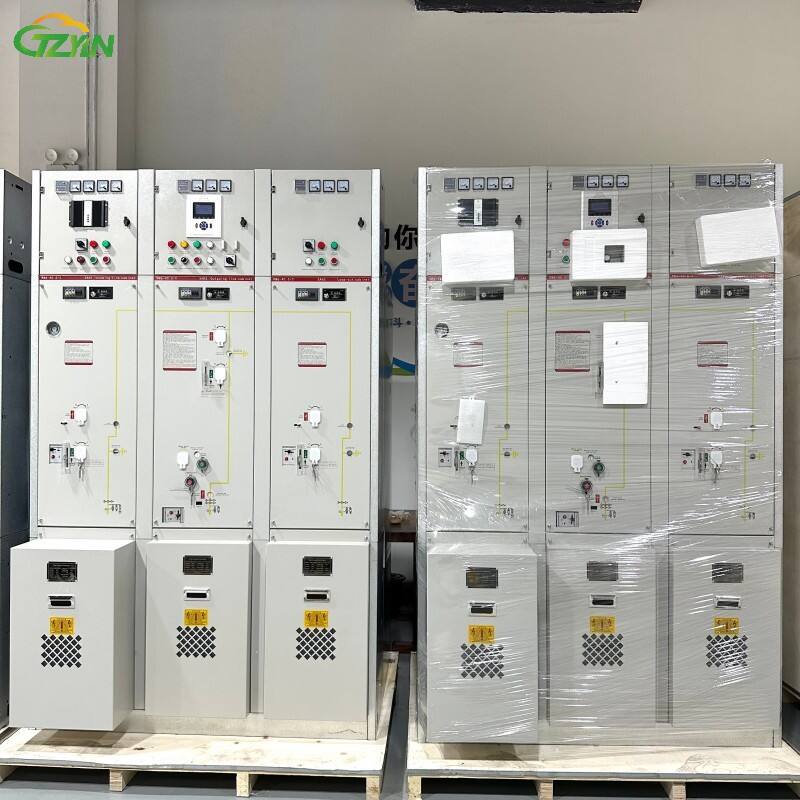

What is 35kV High Voltage Switchgear?
35kV High Voltage Switchgear is a compact metal-enclosed system that integrates circuit breakers,
disconnectors and protection devices to control, protect and isolate electrical equipment.
Designed for medium voltage applications, it is a critical node in the distribution network,
ensuring stable power delivery from the substation to the end user.
Key Features and Benefits
Double Insulation: Combines SF₆ gas or solid insulation to minimize arc flash risks.
Five-fold Protection Mechanism: Prevents accidental operation (such as on-load closing) through an interlock system.
Corrosion-resistant materials: Galvanized steel or stainless steel cabinets withstand humidity, dust and temperature fluctuations (-25°C to +40°C).
Seismic Resistance: Suitable for use in earthquake zones to ensure stability even in unstable ground conditions.
Remote Control: Compatible with SCADA systems for real-time status checks and fault diagnosis.
Condition-Based Maintenance: Sensors track temperature, humidity, and partial discharge to prevent failures.
Sulfur Hexafluoride (SF₆)-Free Options: Optional dry air or environmentally friendly gas insulation to reduce the greenhouse effect.
Low Energy Consumption: Optimize energy efficiency without compromising performance.
 |
 |
 |
Technical Specifications
| Rated Voltage | 35kV |
| Rated Current | 1250A–2500A |
| Short Circuit Rating | 25kA–31.5kA (4s) |
| Insulation Medium | SF₆ Gas/Dry Air/Solid |
How to Power Construction Sites
Fast Deployment: Modular design allows for quick installation at remote sites without the need for permanent infrastructure.
Scalable Capacity: Supports high-load equipment such as cranes, concrete pumps, and welding machines.
Voltage Regulation: Maintain consistent power quality for sensitive equipment (e.g., precision lasers, data centers).
Backup Compatibility: Integrate with generators to prevent downtime during grid outages.
Compact Footprint: Perfect for crowded sites with limited space.
Portable: Skid-mounted units for easy relocation as projects progress.
Other Applications
Industrial Parks: Manage power for plants with fluctuating loads.
Renewable Energy Projects: Connect solar/wind farms to the grid.
Data Centers: Ensure 99.99% uptime for critical IT infrastructure.
Utilities: Upgrade aging substations with modern, space-saving solutions.
