Overview
Operating within factory main distribution rooms, this Reactive Power Automatic Compensation Cabinet serves as a vital energy saving backbone
for modern industrial power grids. Working in tandem with main distribution switchgear and motor control units, the system dynamically manages
heavy inductive loads generated by factory machinery and heavy duty compressors. By continuously adjusting capacitance levels, the unit
prevents utility power factor penalties and maintains strict grid compliance. Facility operations teams rely on this equipment to minimize electrical
losses, balance phase loads, and protect downstream electrical infrastructure. Its modular internal architecture simplifies seamless integration into
existing industrial power distribution setups without requiring extensive facility downtime or complicated rewiring procedures during initial installation
phases across diverse heavy manufacturing production
plant environments today.
Core Components and Features

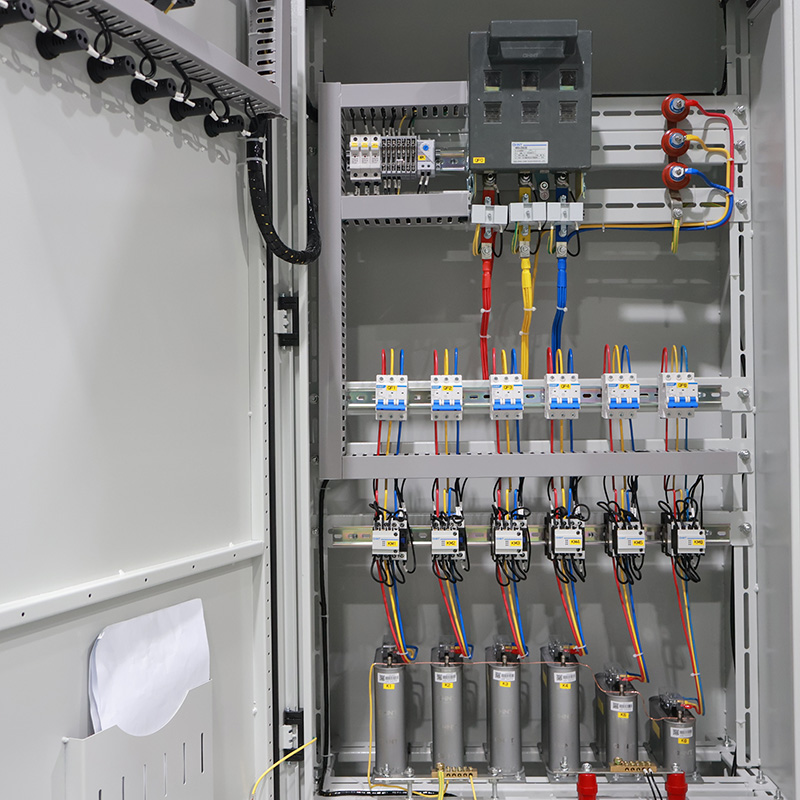

This Advanced Capacitor Compensation Panel features top tier CHNT components engineered for maximum operational reliability and precision control.

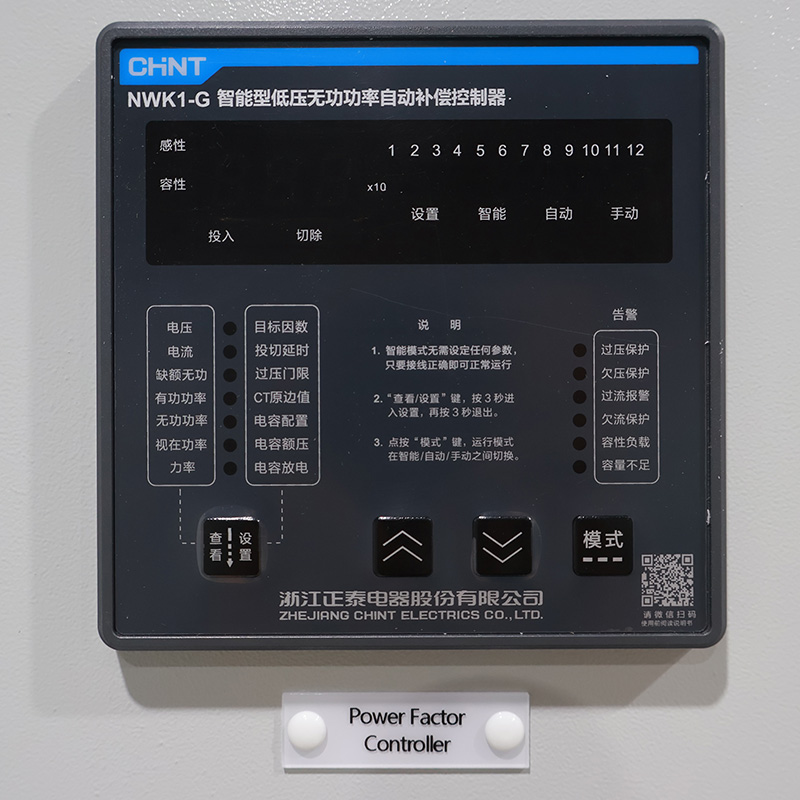

At its core, the intelligent reactive power controller monitors real time voltage and current parameters to dynamically calculate required compensation.

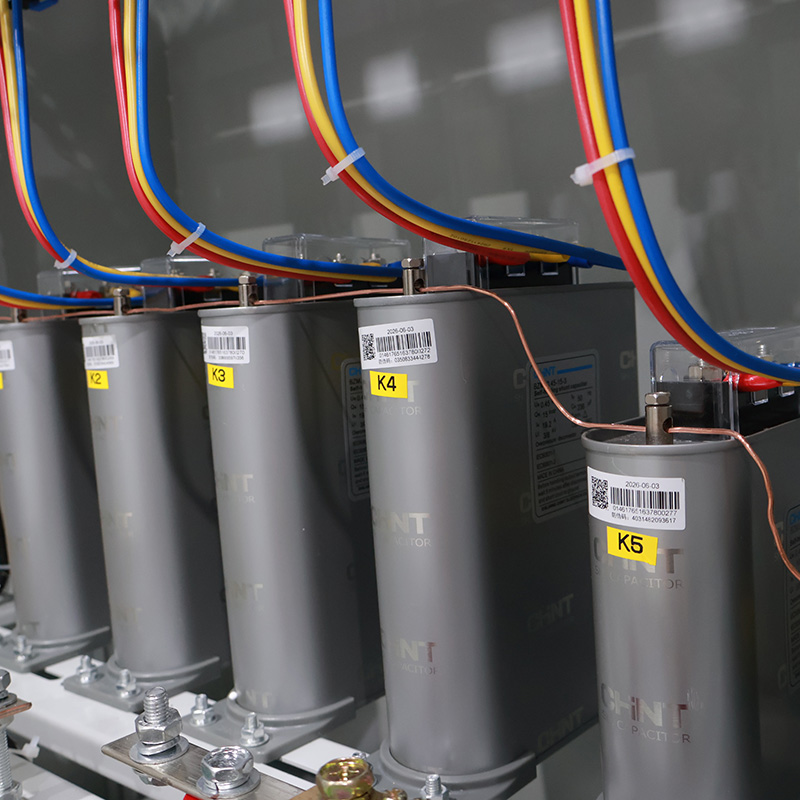

High durability self healing low voltage shunt capacitors store and supply reactive energy on demand, effectively balancing inductive loads. Furthermore,

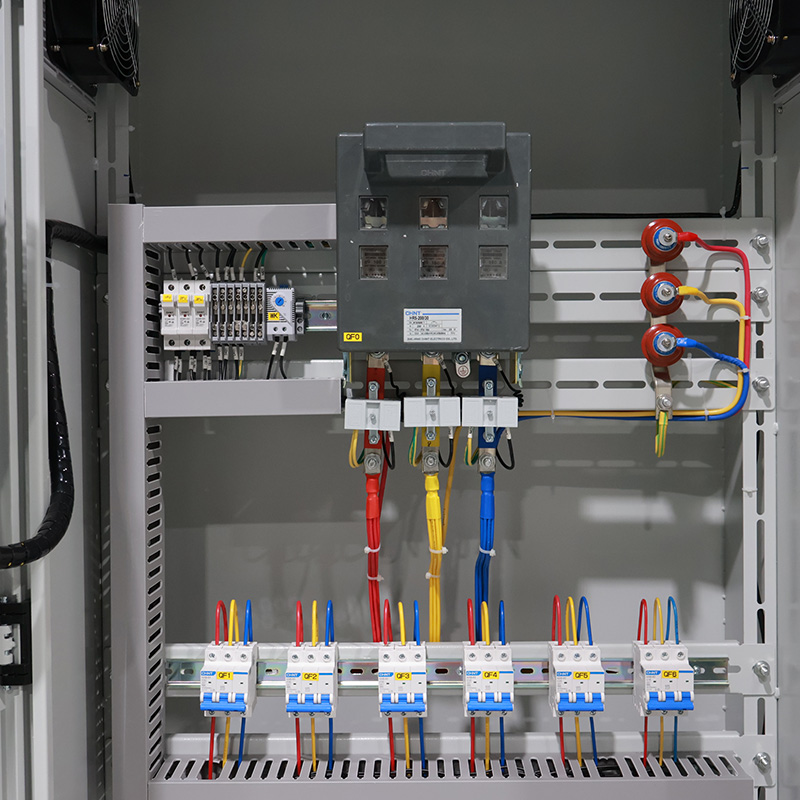

robust switching contactors and protective micro circuit breakers safeguard the entire internal circuit against overloads, voltage surges, and short circuits.

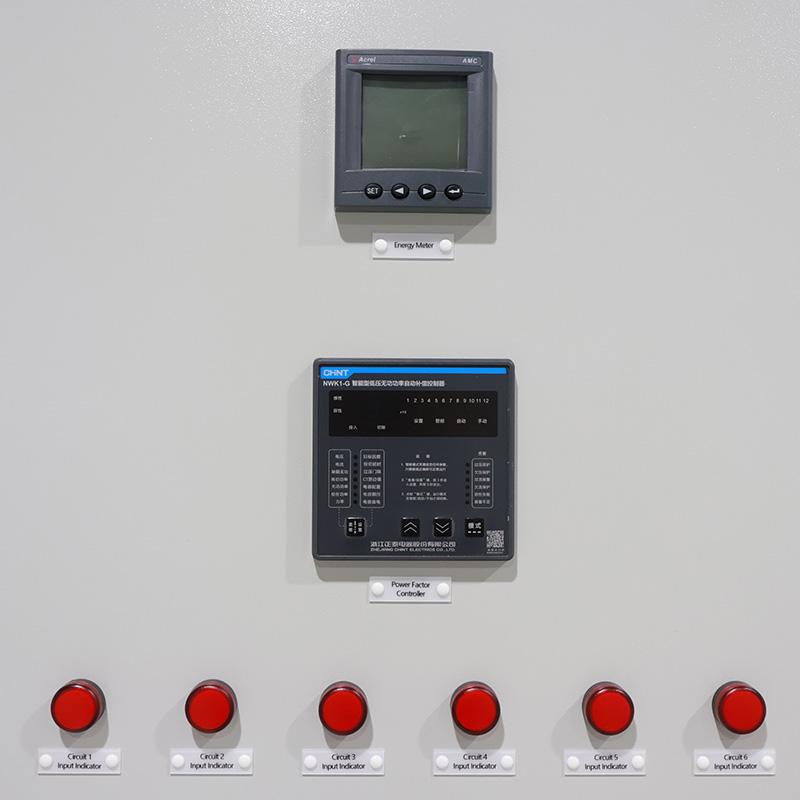

Visual indicators and digital meters mounted on the front door provide clear status feedback for technicians. Together, these precision engineered
elements deliver automated correction cycles that optimize network efficiency, eliminate reactive power charges, and extend the service life of electrical
motors across demanding factory floors without manual intervention under continuous heavy industrial operating schedules every single day, ensuring
maximum equipment uptime, reduced maintenance overhead, and superior power stability across all connected industrial production facilities and
workshop processing assembly lines worldwide.
Design and Compliance
Design:

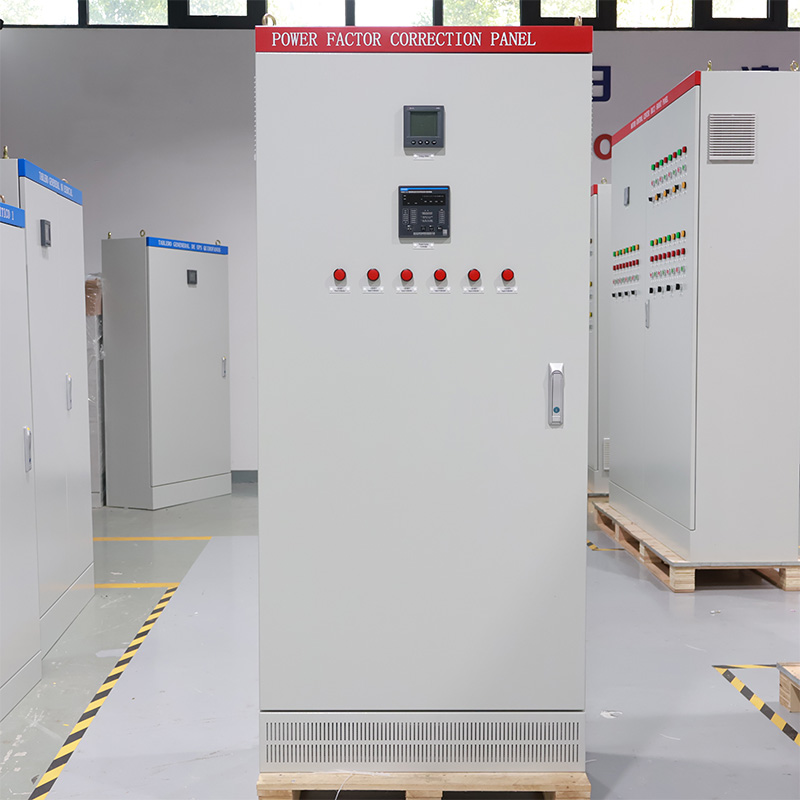

Built within a rugged powder coated heavy gauge steel enclosure, this Automatic Capacitor Bank Panel offers exceptional mechanical protection, impact
resistance, and superior thermal dissipation capabilities. Internal copper busbars, integrated cooling fans, and intelligent component layouts are
meticulously engineered to minimize electromagnetic interference, streamline complex cable routing, and ensure safe, ergonomic maintenance access
for certified electrical technicians during routine inspections. Furthermore, modular panel compartmentalization prevents fault propagation and ensures
maximum structural integrity across all operational phases while maintaining optimal cabinet internal temperatures under peak operating loads.
Compliance:
Fully compliant with domestic industrial electricity norms and rigorous IEC international electrical standards, the complete system holds recognized
global certifications including CE and EAC markings. This strict adherence guarantees that every manufactured unit meets stringent safety, insulation,
dielectric strength, and environmental protection benchmarks required for seamless export and reliable long term installation in diverse international
commercial and industrial markets worldwide. Quality control testing procedures validate every single integrated component before final factory
dispatch to guarantee flawless field performance upon arrival.
Key Advantages
Significant Energy Savings
By eliminating reactive power waste across the electrical grid, this Low Voltage Power Factor Correction Panel substantially lowers monthly electricity
bills and completely prevents costly utility reactive power penalty charges, delivering rapid return on investment for industrial facility operators and
plant managers worldwide, maximizing profitability for large scale manufacturing operations.
Automated Intelligent Control
The onboard smart controller continuously analyzes real time network parameters, ensuring instantaneous capacitor bank switching without any
manual intervention, thereby maintaining optimal power factor levels under fluctuating production loads and preventing phase imbalances, ensuring
uninterrupted manufacturing workflows across every shift.
Enhanced Equipment Lifespan
Stabilizing the local voltage profile and effectively balancing electrical phase loads reduces damaging thermal stress on facility transformers, power
cables, and heavy motors, significantly extending their operational lifespan and reducing ongoing maintenance overhead across all connected machinery,
minimizing unexpected equipment downtime and costly repair expenses.
Flexible Customization Options
Configured as a highly adaptable Customized Automatic Capacitor Compensation Panel, the system can be precisely tailored with specific steps or
capacitor ratings, harmonic filters, and enclosure dimensions to match unique industrial plant power requirements and specific facility layout
constraints, ensuring perfect compatibility with existing electrical infrastructure configurations.
Parameter
Technical Parameter |
Specification |
Rated Voltage |
380V / 400V AC, 3 Phase 4 Wire |
Rated Frequency |
50/60 Hz |
Total Compensation Capacity |
Up to 1000KVAr (Customizable) |
Controller Model |
CHNT NWK1-G Smart Reactive Power Controller |
Capacitor Type |
Self-Healing Low Voltage Shunt Capacitors |
Control Modes |
Automatic, Manual, Intelligent |
Protection Class |
IP30 / IP54 (Optional) |
Operating Temperature |
-10°C to +45°C |
Certifications |
CE, EAC, IEC Standards |
Application Scenarios
Large Processing Plants and Manufacturing Facilities
Deployed directly within the main electrical distribution rooms of heavy machinery manufacturing plants, steel rolling mills, and precision metal
stamping workshops, this equipment counteracts massive inductive loads generated by large industrial drive motors, heavy punch presses, and
high capacity air compressors to maintain optimal grid stability, preventing voltage drops and minimizing transformer overheating during peak
production cycles every single day.
Water Treatment and Municipal Pumping Stations
Installed in municipal wastewater treatment facilities and regional water supply plants to stabilize electrical power quality for heavy duty submersible
water pumps, advanced chemical filtration systems, and continuous aeration blowers that operate around the clock under highly demanding
environmental conditions, ensuring uninterrupted public utility services and reducing municipal energy consumption overhead.
Commercial Complex Real Estate and High Rise Buildings
Utilized in multi story commercial shopping malls, corporate office skyscrapers, and large medical hospital complexes to manage heavy electrical
demands from central HVAC chiller systems, high speed elevator banks, and extensive indoor lighting distribution networks serving thousands of
daily commercial occupants safely, ensuring uninterrupted tenant comfort and compliance with strict local building energy codes.
Agricultural Greenhouses and Aquaculture Operations
Integrated into remote agricultural automation systems and large scale commercial fish farming installations to optimize power delivery efficiency
for high volume irrigation pumps, automated livestock feeding machinery, and sophisticated greenhouse climate control heating and ventilation arrays
operating in distant rural sectors, maximizing crop yields and supporting sustainable agricultural production without electrical interference or sudden
equipment failures.
