Overview
The Remote Power Control Switchgear for LED is a sophisticated engineering solution tailored for large-scale infrastructure. Functioning
as a high-performance distribution node, this system bridges the gap between traditional electrical panels and modern IoT connectivity.
It allows operators to manage complex lighting grids from a centralized digital platform, significantly reducing the need for
manual on-site intervention. By incorporating a robust internal architecture, the unit provides granular authority over diverse
lighting zones. Whether utilized for astronomical time-tracking or manual overrides, the system adapts to specific project requirements,
ensuring that every deployment meets the highest industrial standards for safety and longevity in various environmental conditions,
including extreme temperature fluctuations and high-humidity coastal regions.
Core Components and Features
At the heart of this system lies a synergy of world-class industrial components designed to transform raw power into a managed

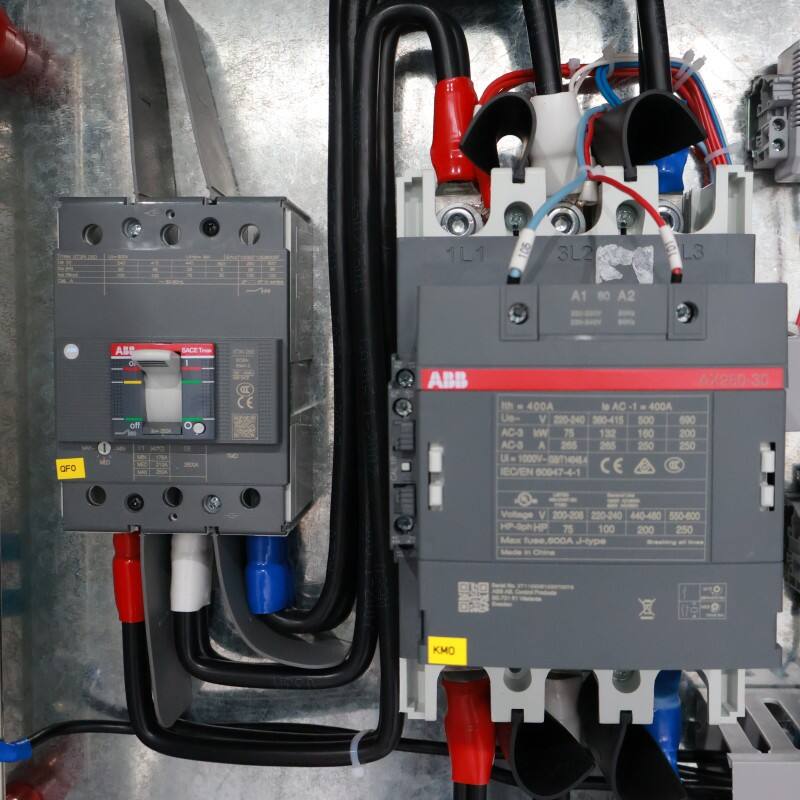

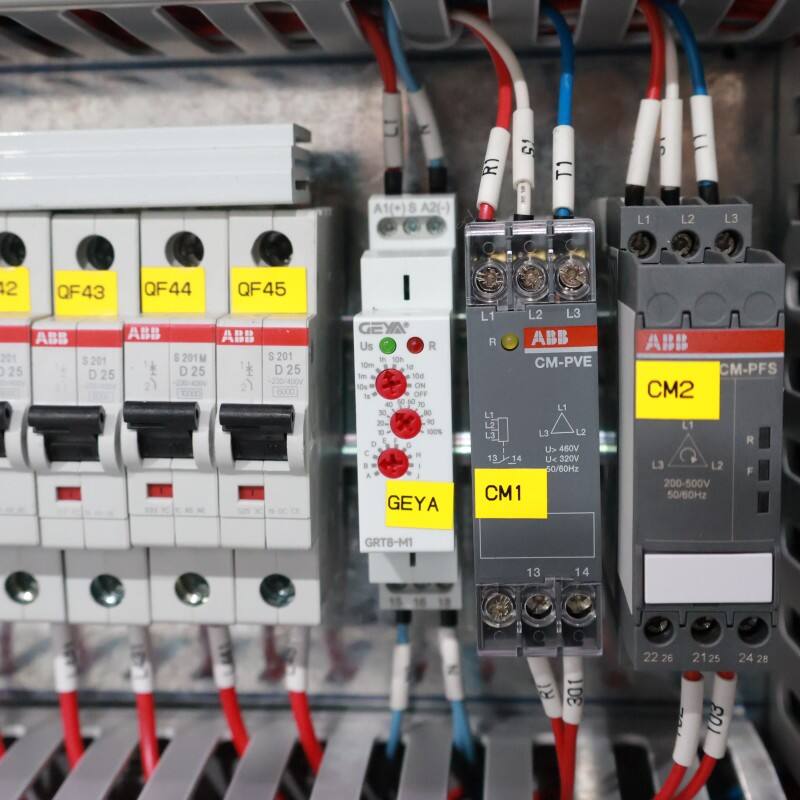

environment. The Automated LED Power Control System utilizes high-precision ABB circuit breakers for robust circuit protection,

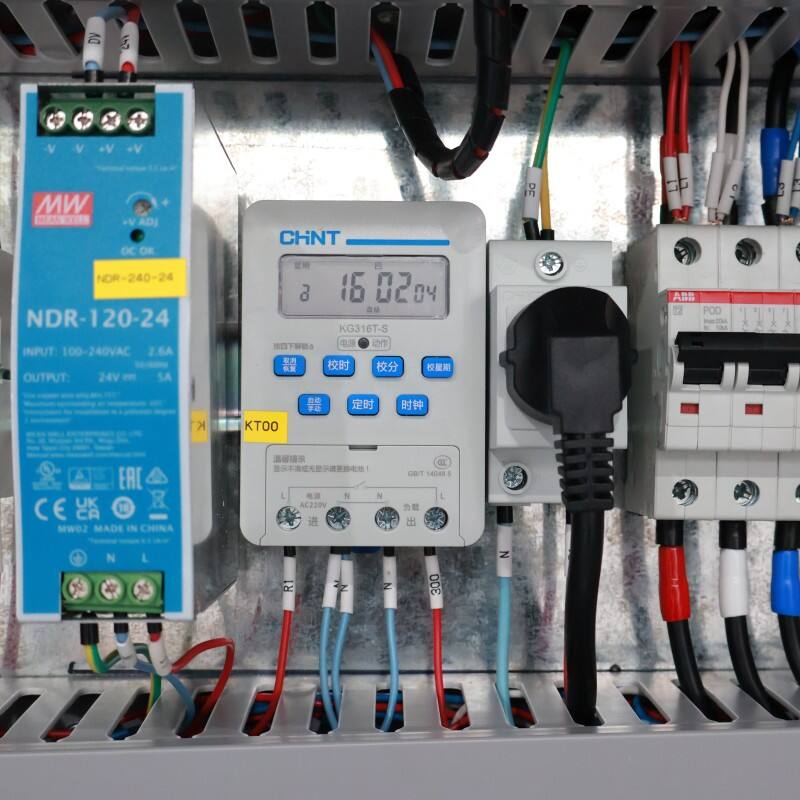

coupled with Mean Well power supplies that define its stability. The integration of advanced logic controllers enables users to execute

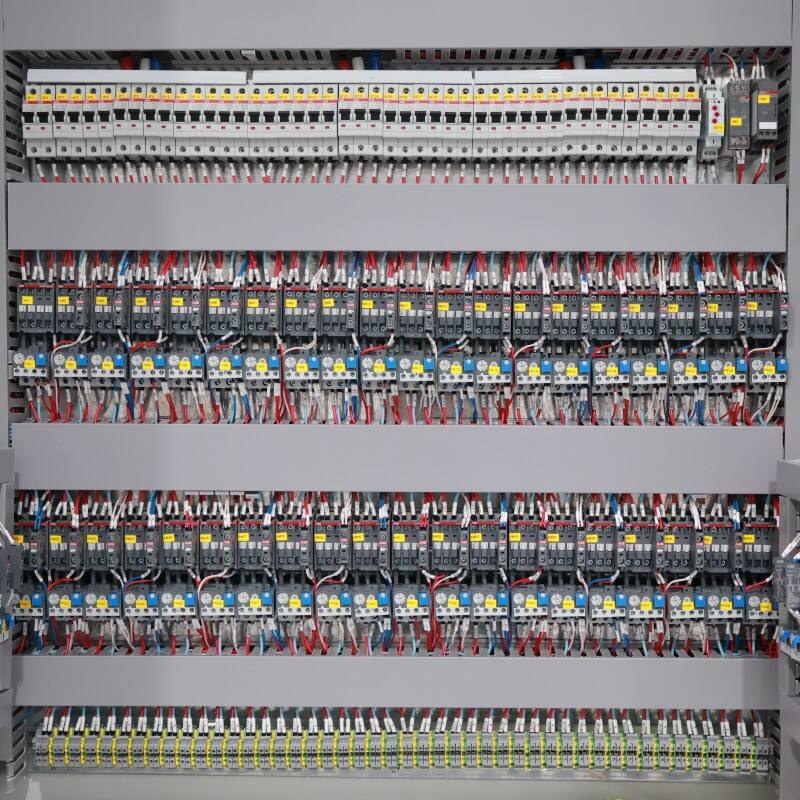

complex switching schedules based on real-time data or pre-set shifts.The unit functions through a series of high-capacity relays to

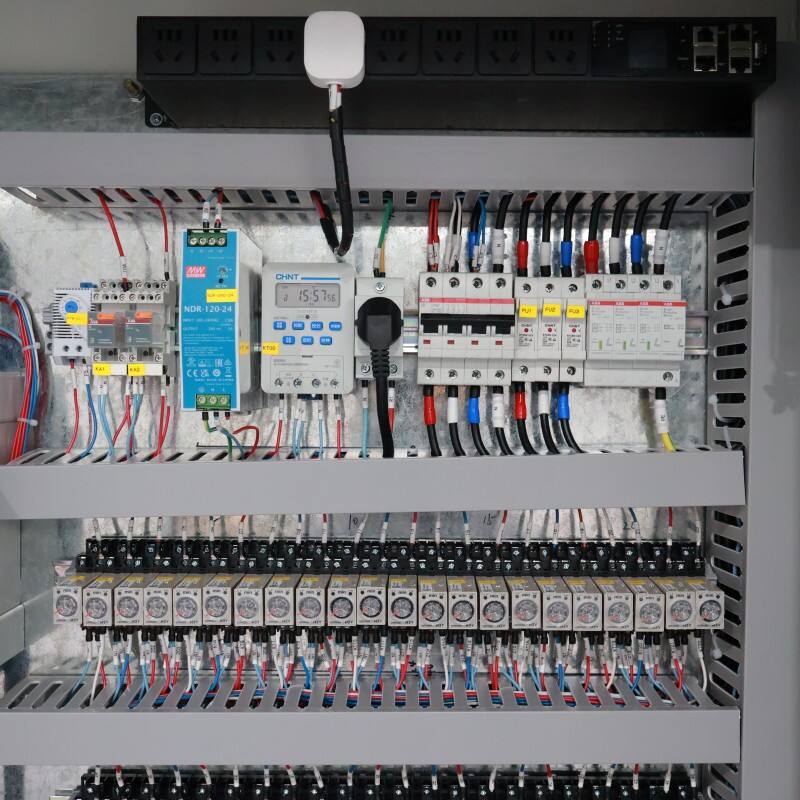

execute commands across dozens of independent circuits simultaneously. To facilitate global accessibility, the cabinet includes a
VPN-enabled router and a PDU, allowing for real-time status feedback and remote troubleshooting. Every build is engineered to
provide a comprehensive interface for both AC and DC load management while maintaining extreme thermal stability during peak
operation, ensuring consistent performance even under maximum load capacity.
Design and Compliance
Design:

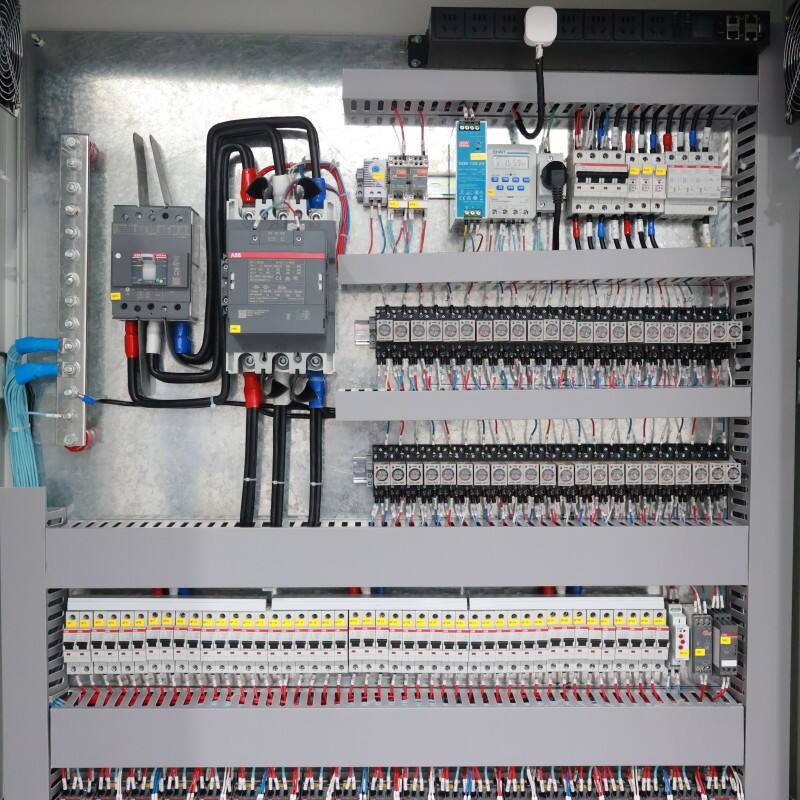

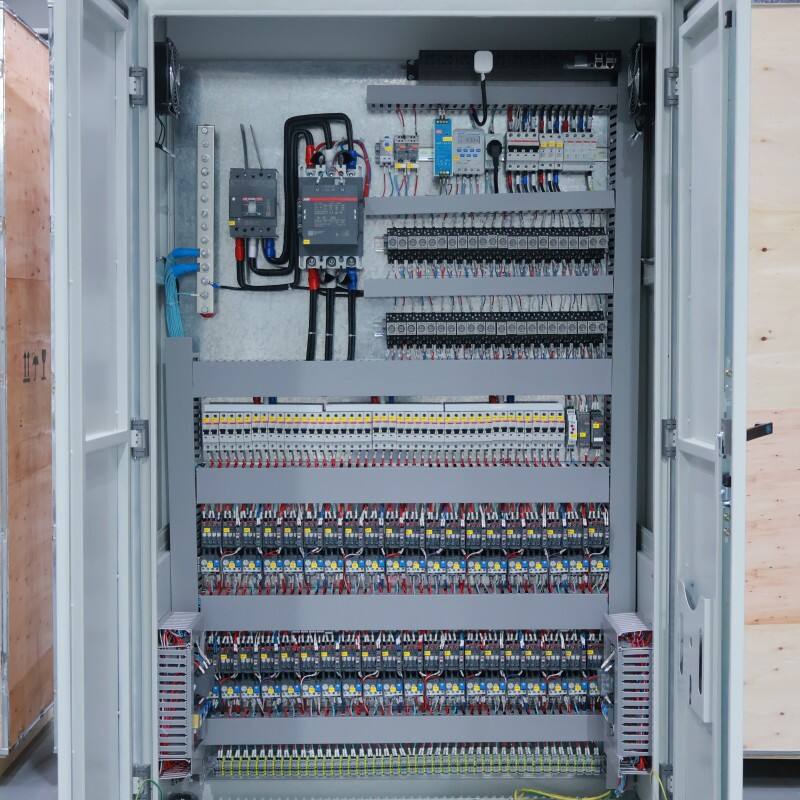

The architectural design of the Intelligent Electric Control Board focuses on long-term durability in demanding outdoor or industrial
environments. It is housed in a reinforced, powder-coated steel enclosure that meets stringent IP-rated standards for dust and
moisture resistance. Internally, the layout features a meticulously organized DIN-rail arrangement, with color-coded wiring and
clear alphanumeric labeling for every branch. This logical mapping facilitates rapid maintenance and ensures optimal airflow,
preventing heat buildup under heavy electrical loads.
Compliance:
Safety is the cornerstone of the Multi Channel Remote Lighting Switchboard. This equipment is manufactured in strict accordance
with international electrical safety codes, including CE and RoHS certifications. It incorporates advanced surge protection and short
circuit prevention mechanisms to safeguard downstream fixtures. Furthermore, the communication firmware complies with modern
cybersecurity protocols for IoT devices, ensuring the network is protected against unauthorized access while meeting all local utility
grid interconnection requirements for harmonic distortion and power factor correction.
Key Advantages
Unmatched Remote Accessibility
The primary strength of the Programmable Timer LED Control Panel is its sophisticated communication interface. Unlike traditional
analog panels, this equipment allows for global management via secure cloud-based platforms. Operators can toggle circuits or
update lighting parameters from any location, significantly reducing on-site labor costs and response times.
High-Efficiency Voltage Management
Equipped as a specialized DC Low Voltage Lighting Control Cabinet, the system provides unparalleled stability in power conversion.
It ensures that sensitive LED modules receive clean, regulated power, effectively extending the lifespan of the lighting fixtures. This
precision eliminates flickering and optimizes energy consumption across the entire lighting network.
Scalability and Bespoke Configuration
Every Custom Electrical Control Panel is built with future expansion in mind. The modular rail system allows for the easy addition of
new circuits, sensors, or smart meters. Whether you are managing a single facility or a city-wide grid, the hardware scales effortlessly
to meet evolving needs.
Enhanced Fault Diagnostics and Protection
The system features real-time diagnostic reporting that identifies electrical faults before they escalate. By monitoring current leakage
and voltage spikes, the equipment can automatically isolate faulty branches while keeping the rest of the network operational, drastically
improving uptime and reducing the risk of fire or hardware damage.
Parameter
Logic Type |
Programmable Remote Logic |
Input Voltage |
AC 220V/380V (±15%) |
Output Voltage |
24V DC / 12V DC / 220V AC |
Circuit Protection |
ABB Miniature Circuit Breakers (MCB) |
Protection Rating |
IP55 Standard |
Switching Capacity |
Up to 48 Channels |
Standard |
CE, RoHS |
Application Scenarios
Urban Infrastructure and Smart City Projects
The system serves as the backbone for modern city-wide illumination. When deployed along highways, it allows municipal authorities
to adjust brightness levels based on traffic density. This ensures streetlights operate only when necessary, reducing a city’s carbon
footprint. It is essential for "Smart Cities" where public lighting responds dynamically to environmental changes and maintenance
alerts are sent automatically.
Commercial Landscapes and Architectural Branding
For high-end commercial properties, the cabinet manages intricate facade lighting. It can synchronize the lighting of multiple buildings
or fountains to create a unified visual experience. The system’s precision is perfect for delicate LED strips requiring steady power.
Managers can design themed light shows for holidays or corporate events, all managed through a single digital interface.
Industrial Facilities and Large-Scale Warehousing
In massive logistics centers, the equipment manages high-bay lighting across vast floor areas. Remote capabilities allow for "zone-
based" lighting, where only active areas are illuminated, saving thousands in utility costs. The system ensures safety lighting remains
active while secondary zones are dimmed, proving its versatility across both high-output industrial and decorative sectors.
Stadiums and Large Public Areas
The equipment is increasingly utilized in sports complexes to manage high-intensity floodlights and emergency exit illumination.
Given the high power demands of stadium LEDs, the unit provides the necessary surge protection and staggered power-up sequences
to prevent grid instability. It allows for instant scene switching between match mode, concert mode, and energy-saving maintenance
mode via remote commands.
