Overview
Modern manufacturing facilities frequently suffer from low power factors and heavy harmonic disturbances caused by inductive loads.
Our premium Capacitor Compensation Cabinet serves as a comprehensive remedy, restoring electrical balance across complex factory
grids. Designed with rigorous industrial standards, this Industrial Reactive Power Compensation Panel actively monitors load fluctuations
and dynamically injects reactive power to maintain optimal cosine phi values. Whether implemented as a standard energy saving upgrade
or integrated into heavy machinery production lines, the system effectively mitigates network losses, prevents utility surcharges, and
extends the operational lifespan of downstream electrical equipment. Its versatile engineering adapts effortlessly to diverse electrical
environments, providing seamless automation and reliable grid support for continuous, uninterrupted commercial and industrial
manufacturing operations worldwide on a daily basis.
Core Components and Features

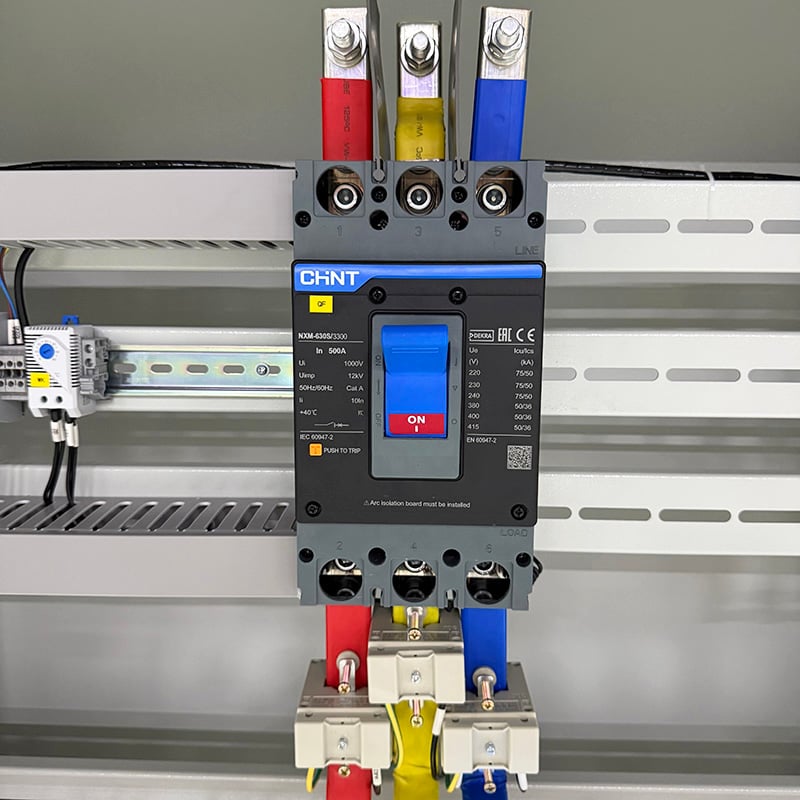

Built around premium original Chint electrical components, the assembly guarantees exceptional durability and safety. The primary incoming
circuit features a robust Chint NXM-630S molded case circuit breaker with a 500A rating, offering superior short circuit protection and high
current-carrying capacity. Control management is governed by the advanced NWK1-G series power factor controller, which precisely

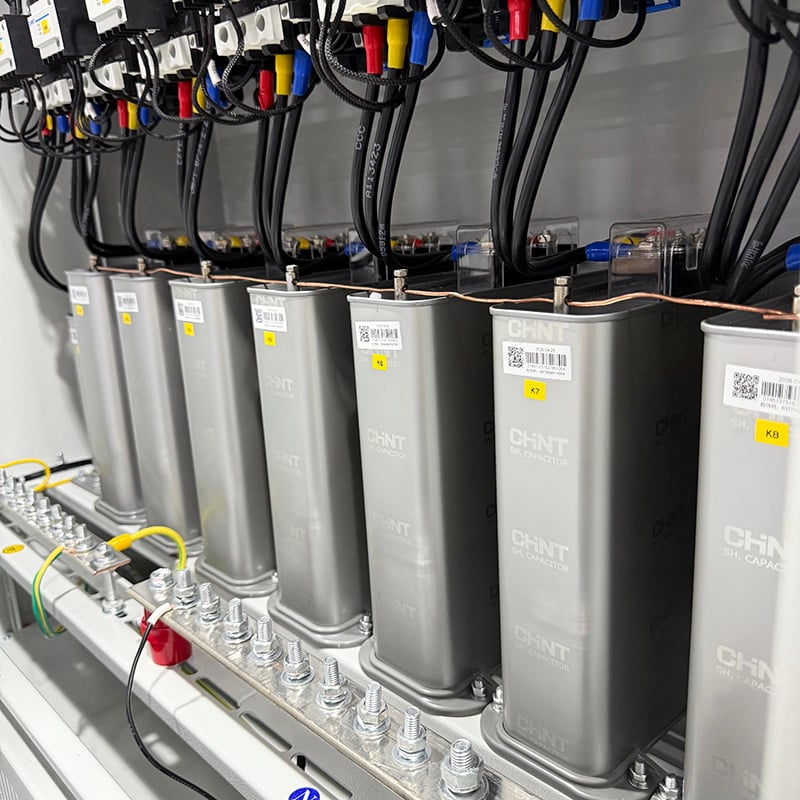

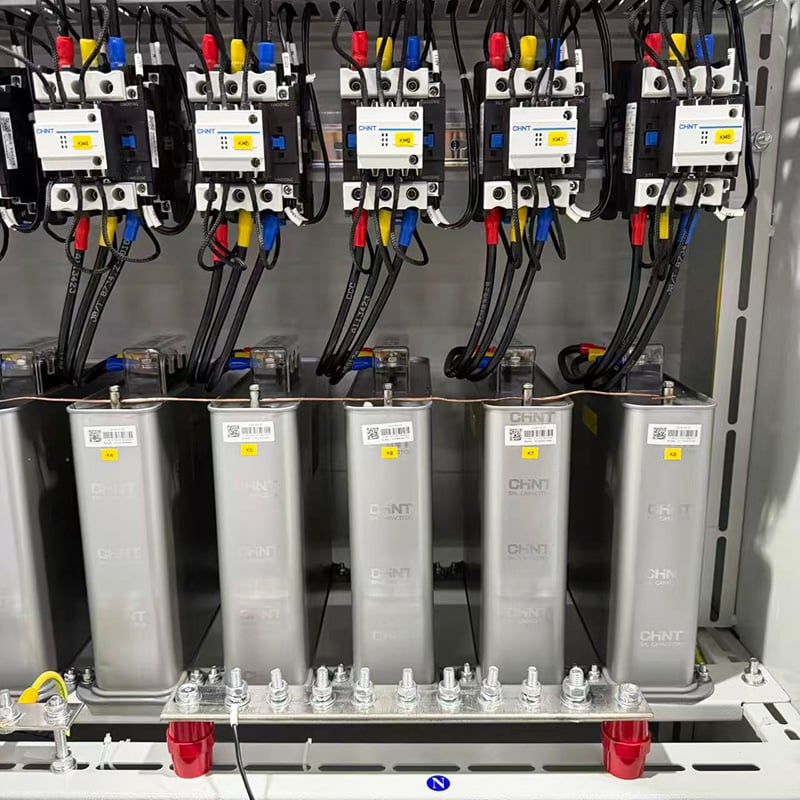

calculates phase shifts and coordinates multi stage switching. Capacitor banks utilize high linearity self healing low voltage capacitors

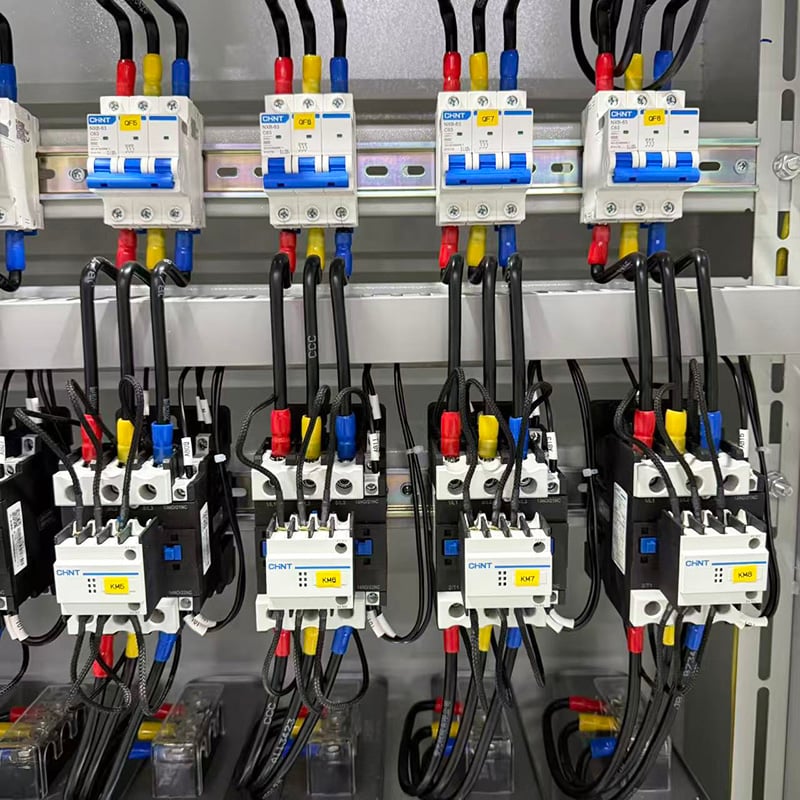

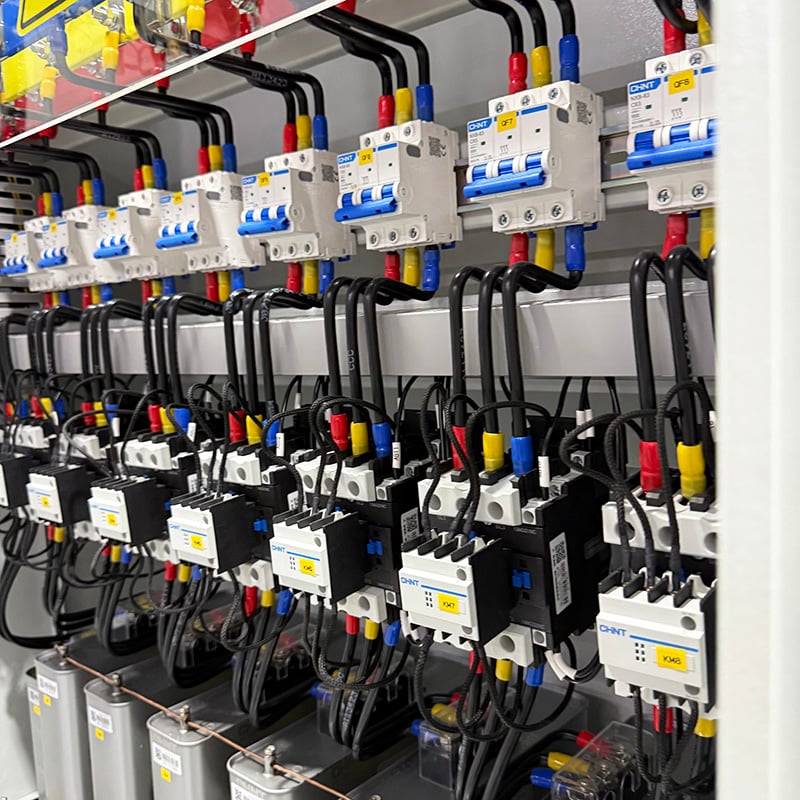

capable of withstanding heavy thermal stress without degradation. Complementing these are dedicated heavy duty contactors designed
specifically for capacitive load switching, minimizing inrush currents during step activation. The operational interface includes a high precision
energy meter and clear LED input indicators for every individual circuit branch, allowing technicians to monitor real-time compensation status
instantly. Furthermore, integrated internal cooling fans prevent heat accumulation, while busbars constructed from high conductivity electrolytic
copper ensure minimal resistance and exceptional thermal stability throughout continuous high load operations across all demanding factory
floor settings every single working day without any unexpected power disruptions.
Design and Compliance
Design:

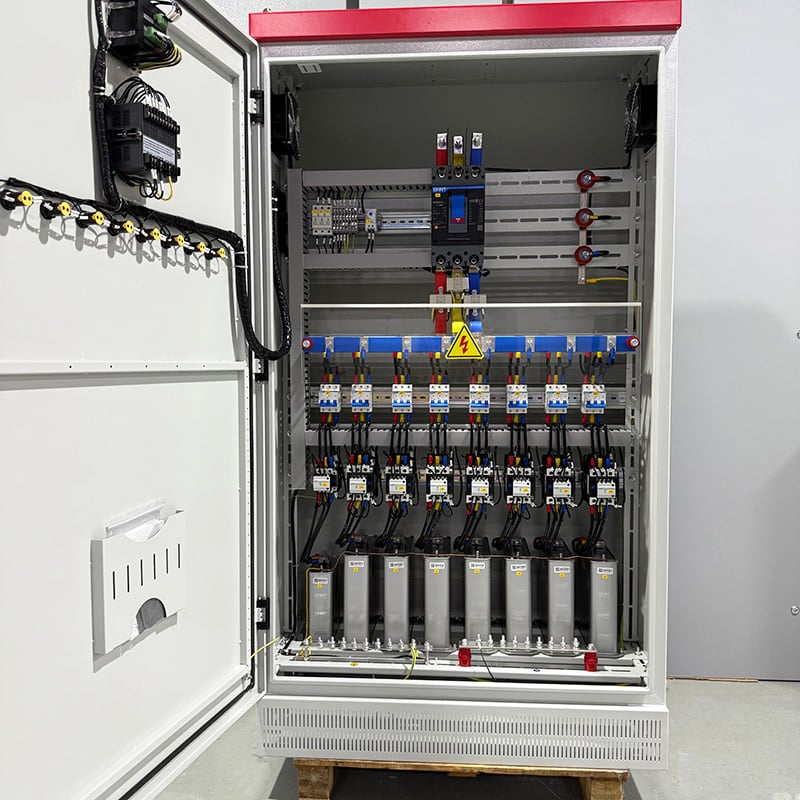

The heavy duty cabinet body is meticulously fabricated from premium thick cold-rolled steel plates, finished with an advanced industrial grade
electrostatic powder coating that provides outstanding resistance to corrosion, scratches, and harsh environmental wear on the factory floor.
Its modular interior layout ensures clean cable routing, optimal component separation, and effortless maintenance access, while the structured
bottom ventilation louvers and top exhaust fans promote efficient thermal dissipation to keep internal operating temperatures safely regulated
under heavy continuous loads.
Compliance:
Engineered in strict accordance with rigorous global electrical safety benchmarks, the unit fully complies with IEC 61439 specifications for low
voltage switchgear and controlgear assemblies. Every internal circuit incorporates comprehensive protection protocols against overvoltage, short
circuits, thermal overload, and phase imbalance, ensuring maximum operational safety for both facility personnel and high-value industrial
machinery while strictly meeting international utility export and grid connection standards.
Key Advantages
Exceptional Energy Efficiency and Comprehensive Cost Savings
By dynamically correcting the overall system power factor close to unity, this advanced unit drastically reduces reactive power circulation,
lowers main transformer losses, eliminates strict utility financial penalties, and significantly cuts monthly electricity expenses for heavy
industrial facilities and commercial installations worldwide during peak operating hours.
High Reliability and Long Service Life
Utilizing genuine, high-grade Chint electrical components throughout the entire internal assembly ensures prolonged operational stability,
minimal maintenance requirements, and an extended service lifespan under continuous heavy-duty industrial workloads and harsh operating
conditions without any performance degradation or unexpected component failures.
Precision Control and Smart Monitoring
The intelligent digital controller and high resolution energy meter provide precise real time data tracking, automated multi step capacitor
switching, and clear visual indicator feedback, allowing plant technicians to oversee power quality and reactive compensation effortlessly
with exceptionally high accuracy and reliability every single day.
Enhanced Grid Protection and System Stability
The robust circuit configuration effectively suppresses harmonic interference and stabilizes local voltage fluctuations, protecting sensitive
downstream manufacturing machinery from premature electrical wear, thermal overheating, and unexpected costly production downtime
across all operational facilities and demanding industrial sectors without fail.
Parameter
Technical Parameter |
Specification Details |
Rated Operational Voltage |
AC 380V / 415V (3-phase 4-wire) |
Rated Current |
500A |
Main Incoming Breaker |
Chint NXM-630S Molded Case Circuit Breaker |
Power Factor Controller |
Chint NWK1-G Series Intelligent Controller |
Capacitor Type |
Low-Voltage Self-Healing Shunt Capacitors |
Switching Components |
Dedicated Capacitive Heavy-Duty Contactors |
Enclosure Material |
Cold-Rolled Steel Plate with Electrostatic Powder Coating |
Protection Degree |
IP30 / IP40 (Customizable up to IP54) |
Cooling Method |
Internal Forced Ventilation Fans and Louvers |
Application Scenarios
Beverage and Food Processing Plants
Serving as an efficient Power Factor Correction Cabinet for Beverage Factory applications, food and beverage production lines utilize
numerous high power pumps, refrigeration compressors, conveyors, and automated packaging motors that introduce heavy inductive
loads into the grid. Installing this advanced compensation system effectively stabilizes the power factor, prevents costly utility fines,
and ensures smooth, uninterrupted manufacturing workflows throughout continuous processing cycles.
Injection Molding and Metal Processing Workshops
Heavy industrial machining centers, CNC equipment, stamping presses, and plastic injection molding presses generate severe reactive
power demands and frequent voltage sags across the plant floor. The equipment provides rapid dynamic compensation, protecting
sensitive motor drives, preventing thermal overheating, and reducing overall grid stress during high-load manufacturing cycles.
Textile and Manufacturing Industrial Parks
Large-scale textile mills operating hundreds of high speed spinning and weaving looms benefit immensely from centralized power factor
correction, which minimizes transmission line losses, eliminates voltage drops, enhances equipment lifespan, and optimizes overall
energy distribution efficiency across extensive multi building factory layouts and regional industrial parks.
Commercial Buildings and EV Charging Stations
Beyond traditional manufacturing factories, the system is ideally suited for large commercial complexes, high rise office buildings, data
centers, and high-capacity electric vehicle charging stations, providing stable voltage support and intelligent reactive power management
to handle fluctuating high-current demands safely and reliably under all operating conditions and load profiles.
