Product concept
In the Philippines ever-changing energy landscape, the power grid frequently faces challenges from

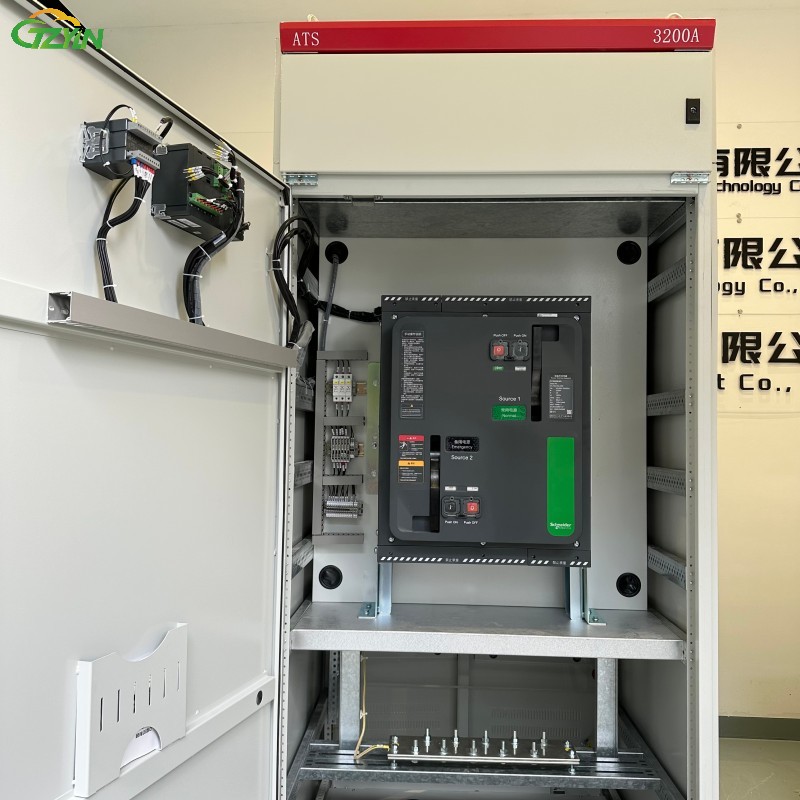

tropical weather and fluctuating demand. Our custom-designed Automatic Transfer Switch (ATS)
Cabinets are a critical safeguard for power plants.
Why choose our ATS cabinets?
Corrosion resistance: Stainless steel/IP55-rated enclosures protect against salt spray and high humidity (common in coastal areas like Manila or Visayas).
Wide temperature range: Operates flawlessly in environments ranging from 15°C to 55°C, withstanding tropical heat and heat generated by generators.
Seismic performance: Designed to withstand the Philippines' seismic zone (NSCP 2015 compliant).
Power transfer: Less than 0.8 seconds, minimizing equipment stress and preventing control system data loss.
HMI dashboard: Provides voltage/current indicators, fault alarms, and remote access via Modbus TCP/IP or SCADA integration.
 |
 |
 |
Technical Parameters
| Rated Current | 800A–6300A (customizable) |
| Switching Capacity | Up to 4000A @ 690V AC |
| Transfer Time | ≤0.8s (open circuit transfer) |
| Protection Rating | IP55 (NEMA 4X optional) |
| Control Voltage | 24V DC / 220V AC (dual redundancy) |
Application Scenarios
Coastal Facilities: Withstands salty air in areas such as Batangas or Leyte.
Power Plants: Provide backup power to turbines, boilers, and control rooms when the grid is unstable.
Renewable Energy Sites: Seamless transition between solar/wind power and diesel generators.
Industrial Facilities: Factories, mining operations, and water treatment plants in remote areas.
Disaster Resilient Infrastructure: Hospitals, emergency centers, and telecommunication towers in typhoon-prone areas.
