Project Overview
This product is an integrated power protection solution designed for modern office scenes.
With APC uninterruptible power supply (UPS) as the core, it builds a full-link protection system from mains input to equipment power supply.

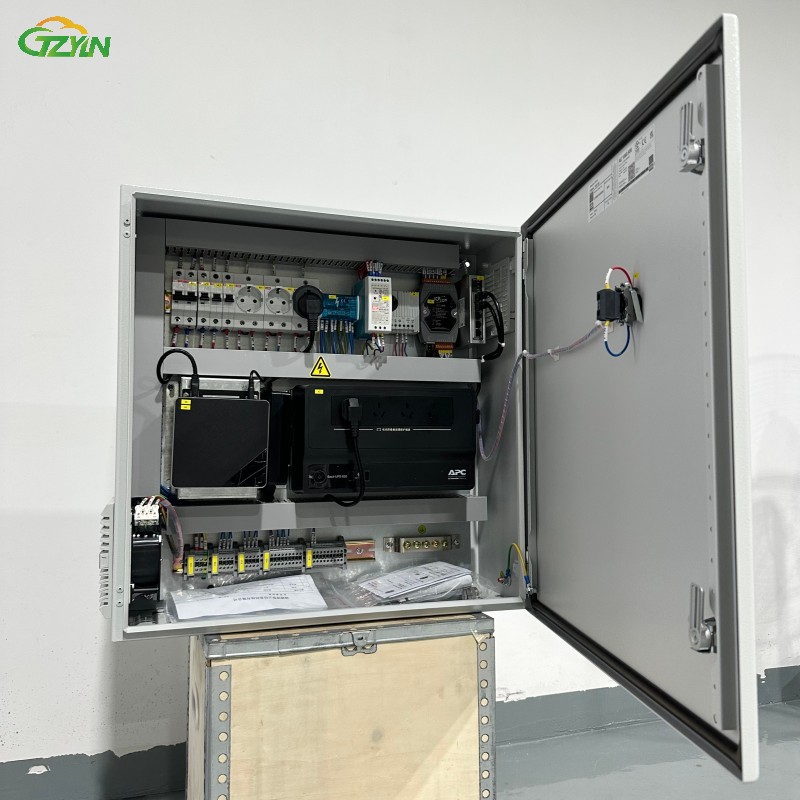

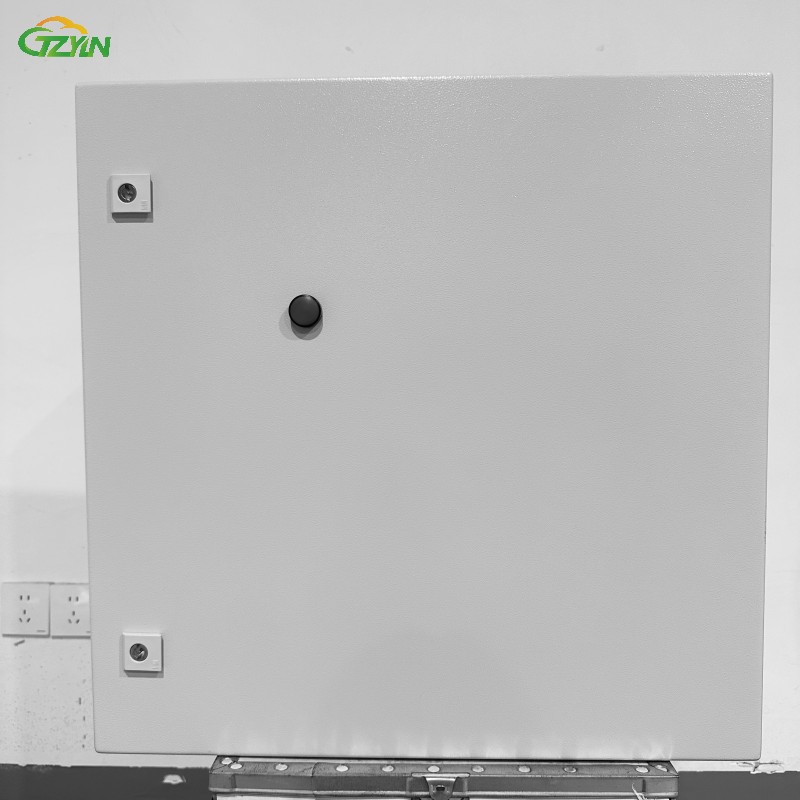

The cabinet can be seamlessly embedded in the office workstation environment to provide stable and pure power supply
for key equipment such as computers, printers, scanners, etc., solve problems such as data loss and equipment downtime
caused by sudden power outages, and improve office continuity and efficiency.

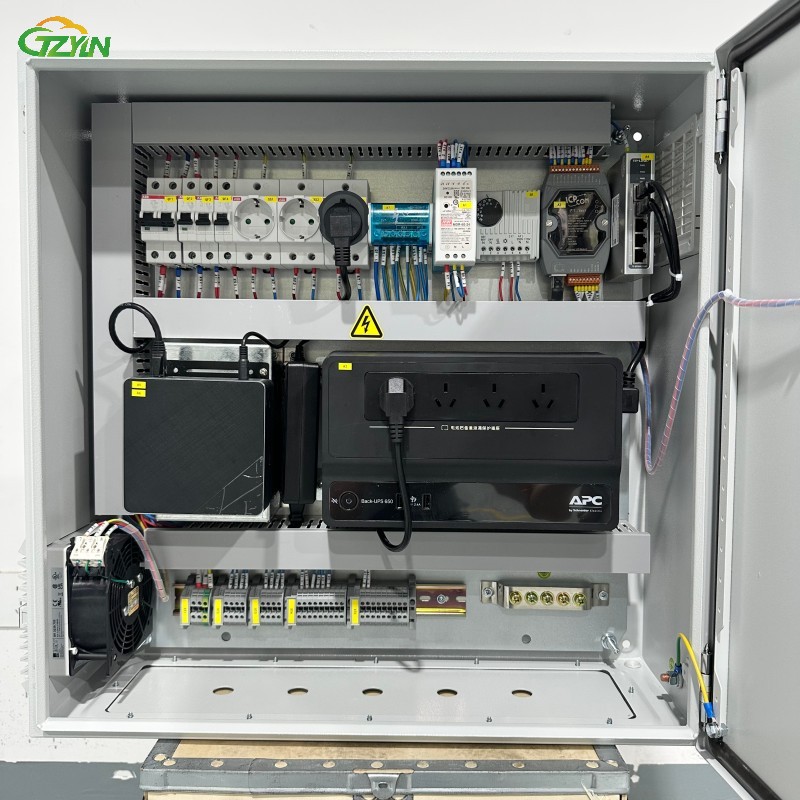

Core component configuration
APC UPS uninterruptible power supply
Adopts double conversion online technology to provide sine wave output to ensure that the equipment always runs in a pure power environment.
The intelligent battery management system (ABM) extends battery life and supports hot-swap maintenance.
Circuit breaker
The main circuit is equipped with a high-breaking capacity circuit breaker to achieve dual protection of overload and short circuit.
Contactor and relay
The electromagnetic contactor controls the main power supply on and off, and the relay realizes the main power/UPS switching logic.
Guide rail terminal block
Standardized guide rail installation supports fast wiring and line expansion.
Surge protector
The three-level lightning protection module suppresses transient overvoltage and protects equipment from lightning strikes or power grid fluctuations.
 |
 |
 |
 |
What are the core functions?
Seamless power switching
When the city power is interrupted, the UPS completes the switch within 2-4ms, the computer does not restart, the printing task is not interrupted, and the file is not damaged.
Intelligent voltage-stabilized output
Automatically corrects voltage fluctuations (such as ±15% fluctuations) to provide stable power for sensitive equipment such as laser printers.
Multi-level equipment protection
Surge protection + EMI filtering + overload isolation to build a device-level power purification barrier.
Remote monitoring extension
Optional APC network management card to achieve real-time monitoring of UPS status and remote shutdown command issuance.
What are the product advantages?
Efficient and stable: APC UPS conversion efficiency is more than 95%, reducing long-term operating energy consumption.
Modular design: The cabinet adopts a standard 19-inch rack structure, and the components are pre-installed on the rails, which shortens the installation time by 60%.
Safety certification: Passed multiple safety certifications such as CE, UL, 3C, etc., adapted to global office environments.
Silent operation: UPS fan intelligent speed regulation, noise ≤45dB, suitable for open office area.
Compatible expansion: Support parallel expansion, more workstations or server equipment can be seamlessly connected in the future.
Application scenarios
Design studio: Prevent CAD drawings and 3D rendering processes from being lost due to power outages.
Financial trading post: Ensure that real-time trading of stock/foreign exchange terminals is not interrupted.
Government service window: Avoid service interruption caused by restarting the queuing system.
Medical office area: Maintain the data integrity of the electronic medical record system and inspection equipment.
Educational institution computer room: Ensure that multimedia classroom equipment is safely shut down during power outages.
