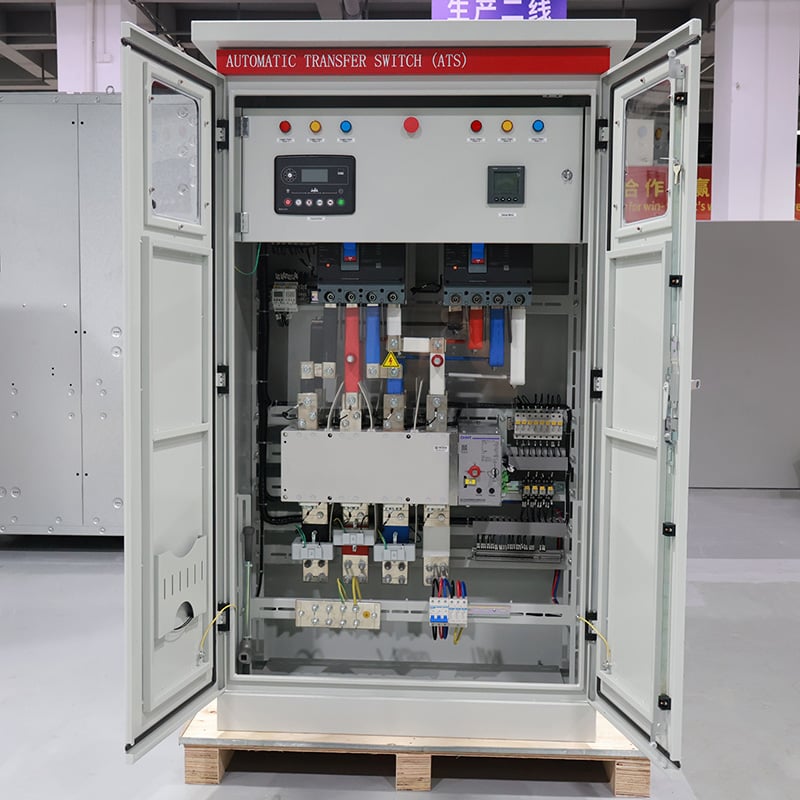

800A Dual Power ATS Switch Cabinet for Industrial Manufacturing Plant

Unplanned power outages pose severe operational and financial risks to modern commercial and industrial enterprises, frequently causing

severe machinery damage, lost manufacturing productivity, and substantial financial losses. Built as a heavy-duty industrial power distribution

safeguard, this high-performance ATS Cabinet effectively eliminates grid reliability challenges by providing fully automated, instantaneous

power transfer between main utility lines and emergency standby generators. Incorporating dual high-capacity 800A circuit breakers along

with state-of-the-art digital monitoring technology, the system continuously analyzes incoming grid voltage stability, phase balance, and

frequency status. Upon detecting any utility failure, brownout, or phase drop, it immediately triggers automatic generator start sequences

and transfers total electrical load within milliseconds. This exceptionally durable construction makes the unit an indispensable core asset

for facility managers requiring dependable electricity.

The internal electrical architecture integrates industrial-grade distribution components designed to guarantee maximum operational safety,

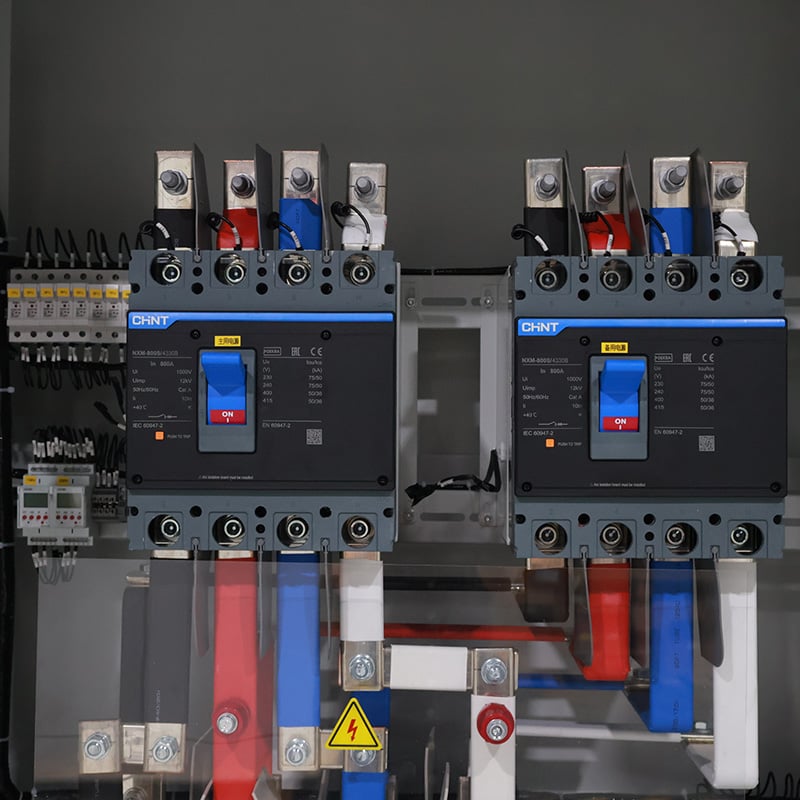

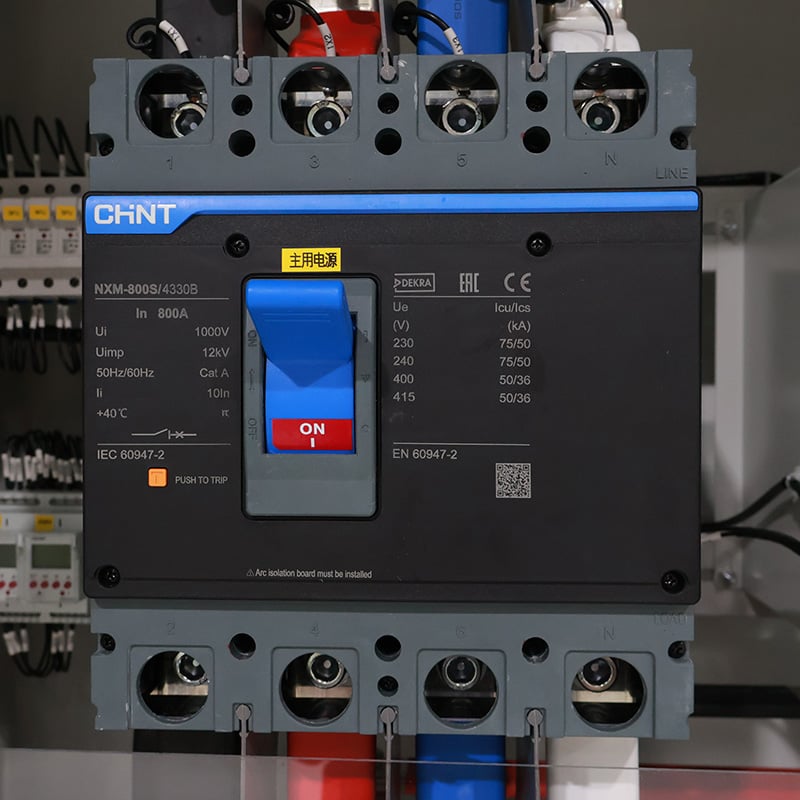

rapid response, and precise power control. At its structural core, two heavy-duty 800A molded case circuit breakers (MCCBs) handle primary

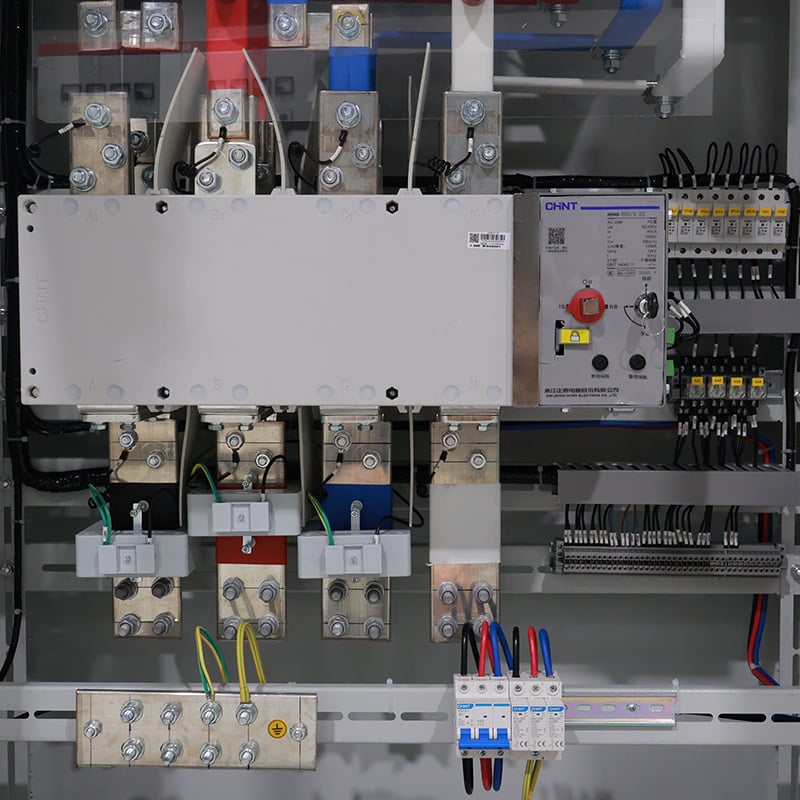

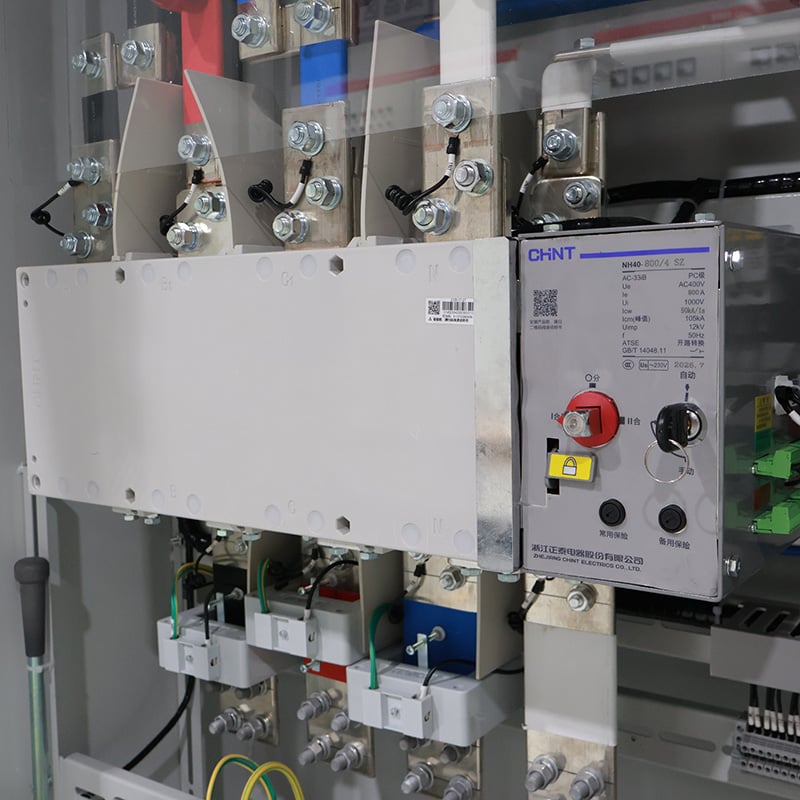

and secondary power lines, driven by a dedicated high-torque motor-driven changeover mechanism. The entire operational sequence is

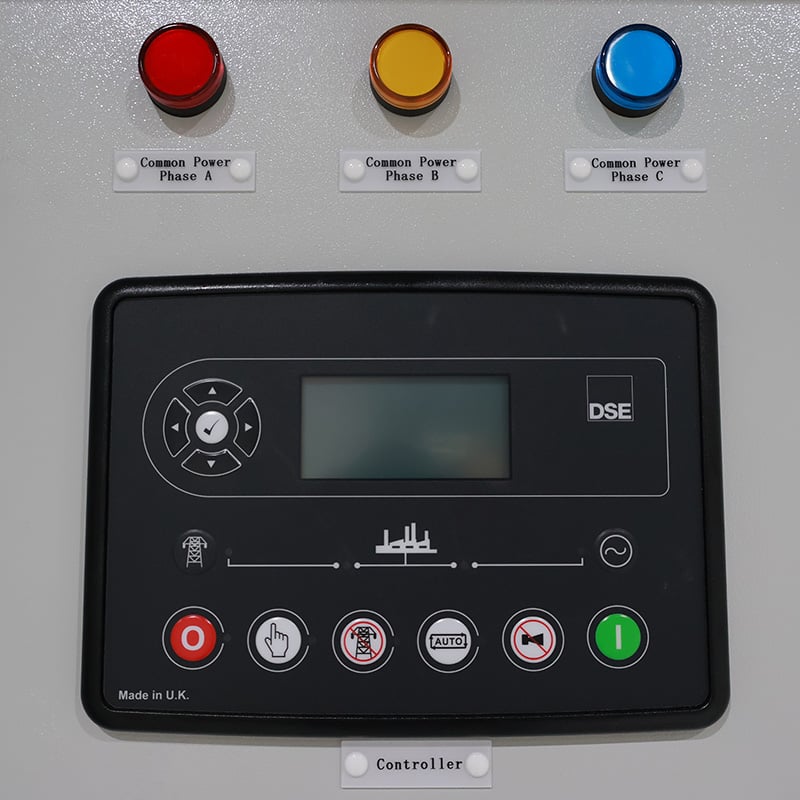

directed by an advanced digital controller featuring an intuitive LCD user interface, which displays real-time diagnostics, system voltage,

current load, and configurable switching parameters.

Additionally, this Outdoor ATS Panel Board incorporates specialized heavy-duty copper busbars, surge protection devices (SPD), and bright

LED phase indicator lights mounted neatly on the front door panel. Operational safety is strictly maintained through robust mechanical and

electrical interlocks, completely preventing simultaneous dual-source connections. Auxiliary wiring terminals allow seamless communication

integration with modern central facility monitoring systems and automated building management networks for instant remote status

reporting and fault logging.

Fabricated from high-strength cold-rolled galvanized steel sheets and finished with weather-resistant outdoor epoxy powder coating, the

outer enclosure delivers superior anti-corrosion protection and an IP54/IP65 ingress protection rating. The functional dual-door enclosure

design features thick toughened glass inspection windows, heavy-duty multi-point door locks, and internal protective isolation plates,

enabling technical personnel to perform visual status monitoring safely without exposing internal electrical components to environmental

dust, moisture, or corrosive outdoor elements.
