Overview
Modern industrial facilities require a highly reliable foundation for heavy electricity management. This Low Voltage Switchgear serves as the primary
gateway linking transformer outputs directly to plant sub-distribution networks. Recognized widely as a premier High Current Low Voltage Switchgear
solution, it accommodates heavy electrical loads effortlessly while minimizing transmission losses. Built into a sturdy structural frame, the system
integrates advanced switching, measuring, and busbar arrangements seamlessly. It addresses the rising demand for efficient energy handling in
complex manufacturing plants today. By streamlining power intake and offering clear status visualization, facility operators can manage daily
electrical distribution smoothly, preventing unexpected outages, reducing costly downtime, and maintaining peak operational productivity without
facing any hidden safety hazards during heavy industrial workloads every day.
Core Components and Features
At the heart of this advanced Integrated Distribution Switchgear lies a suite of precision-engineered components designed for maximum reliability.

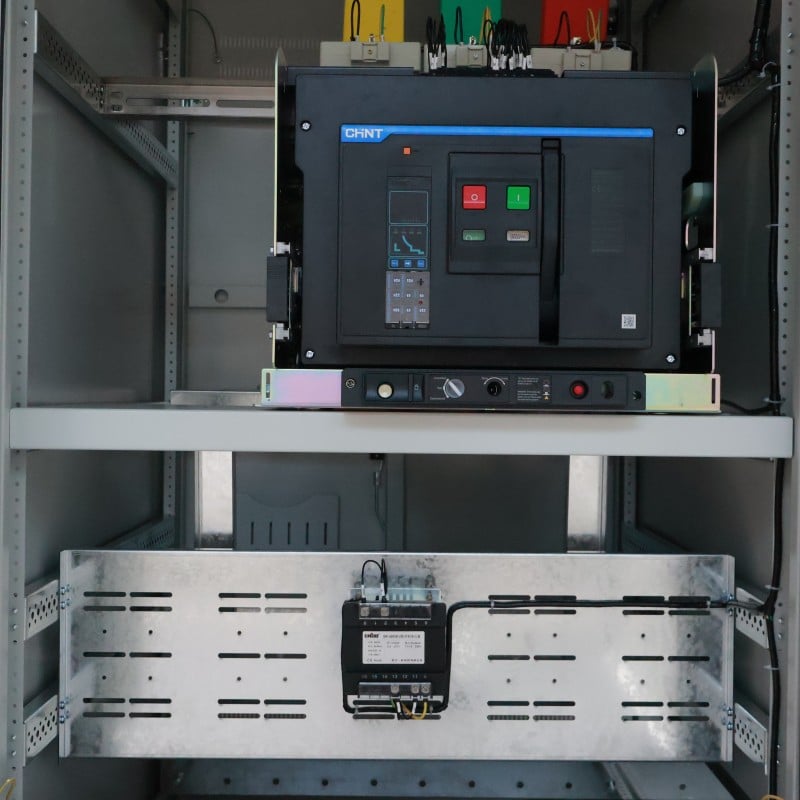

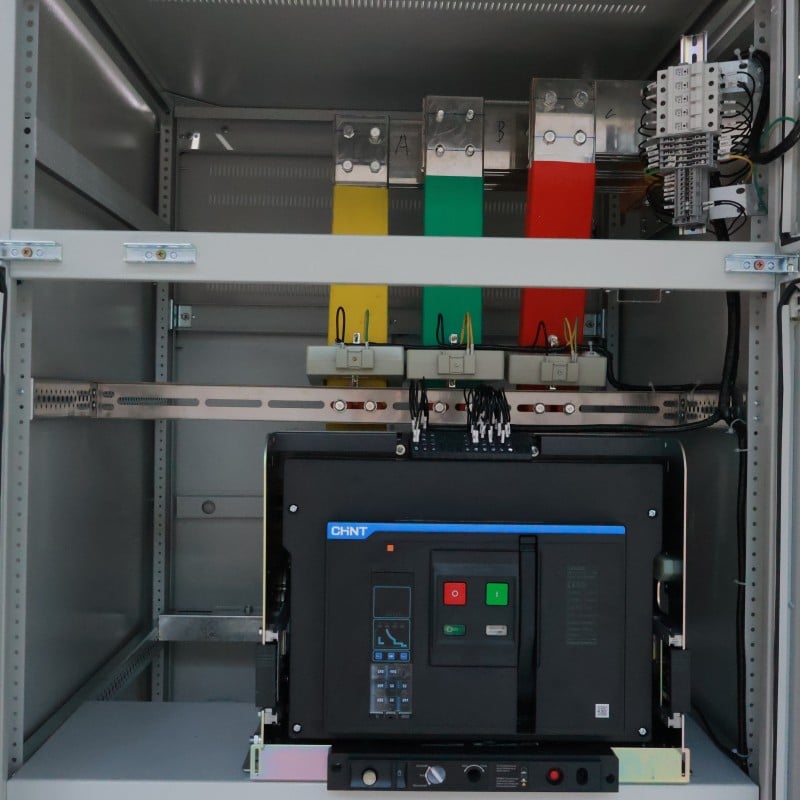

Functioning primarily as a robust 4000A Incoming Switchgear for Industrial Plant operations, it features a high-performance air circuit breaker that
provides immediate overload and short-circuit protection. Complementing this core breaker is an integrated power meter capable of tracking voltage,
current, and harmonic distortion in real time. A specialized control transformer steps down voltage to power internal control circuits safely and

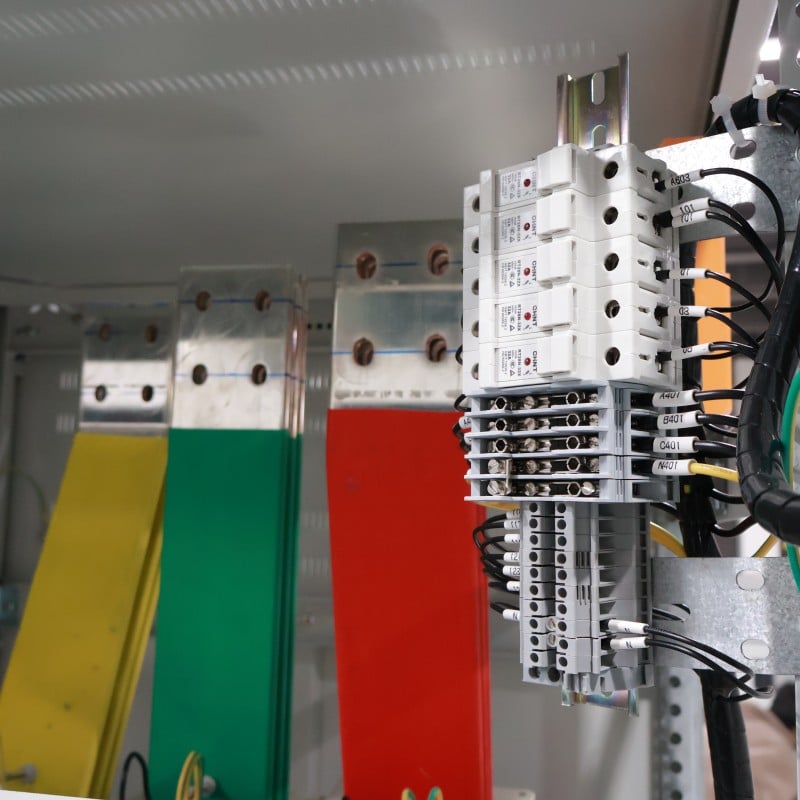

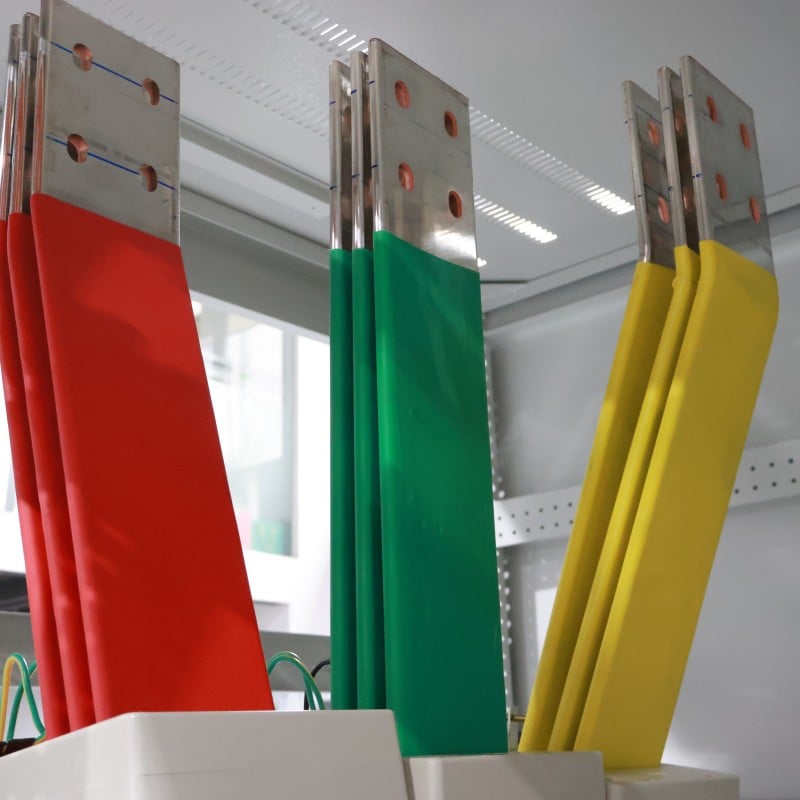

consistently. Furthermore, thick copper busbars ensure superior conductivity across all phases, while distinct indicator lights display energy storage,
switch status, and fault alerts instantly. Together, these harmonized elements deliver unrivaled circuit isolation, accurate energy metering, and rapid
fault response capabilities, ensuring that facility managers retain total control over their incoming power distribution networks without experiencing
any unplanned disruptions during peak production cycles while protecting costly machinery from electrical anomalies effectively and safely under all
harsh industrial operating conditions without any exception.
Design and Compliance
Design:
Engineered expertly as a heavy-duty 4000A Electric Switchgear, the sturdy enclosure utilizes thick cold-rolled steel plates assembled meticulously
into a rigid modular frame, offering exceptional resistance to mechanical stress, physical vibrations, and harsh environmental corrosion. Internal
partitioning physically separates high-voltage pathways from sensitive instrumentation zones, thoroughly protecting operators during routine
maintenance checks. Dedicated ventilation louvers ensure optimal natural heat dissipation, while transparent observation windows allow safe visual
inspection of internal components without needing to open heavy cabinet doors.
Compliance:
The complete distribution system adheres strictly to established global electrical safety protocols, undergoing rigorous factory testing for dielectric
strength, short-circuit endurance, and thermal limits under maximum load conditions. Comprehensive grounding buses run continuously across the
entire structural frame, completely preventing hazardous electrical shock risks for all working personnel. Advanced fire-retardant barriers and strict
compliance with major international electrical directives ensure that industrial facilities meet local regulatory codes effortlessly, guaranteeing long
term operational legality, maximum structural integrity, and absolute personnel protection everywhere.
Key Advantages
Exceptional Current Handling Capacity
Designed specifically for demanding heavy-duty industrial operations, the unit manages immense electrical currents reliably, ensuring exceptionally
stable power delivery without overheating, energy loss, or hazardous voltage drops across complex, sprawling manufacturing plant networks every
single day without failing.
Intelligent Real-Time Monitoring
Equipped with advanced digital meters and multi-function programmable displays, the system provides precise, continuous tracking of voltage,
current, frequency, power factor, and overall energy consumption, allowing operators to detect grid anomalies instantly and optimize facility power
usage efficiently and safely.
Enhanced Operational Safety
Featuring robust air circuit breakers, clear status indicator lights, and rigorous internal insulation barriers, it protects both operating personnel
and costly production machinery from sudden short circuits, phase imbalances, and destructive electrical overloads under all operating conditions
and harsh environments.
Modular and Flexible Installation
The standardized internal cabinet layout facilitates straightforward physical integration with existing electrical infrastructure, offering effortless
expandability for future upgrades, high maintenance accessibility for technicians, and minimized downtime during routine safety inspections or
scheduled servicing procedures seamlessly and quickly.
Parameter
Technical Parameter |
Specification Detail |
Rated Operational Voltage |
AC 380V / 400V / 690V |
Rated Current Capacity |
Up to 4000A |
Main Circuit Breaker |
Chint NXA Series Air Circuit Breaker (ACB) |
Energy & Power Metering |
Acrel Multi-function Digital Power Meter |

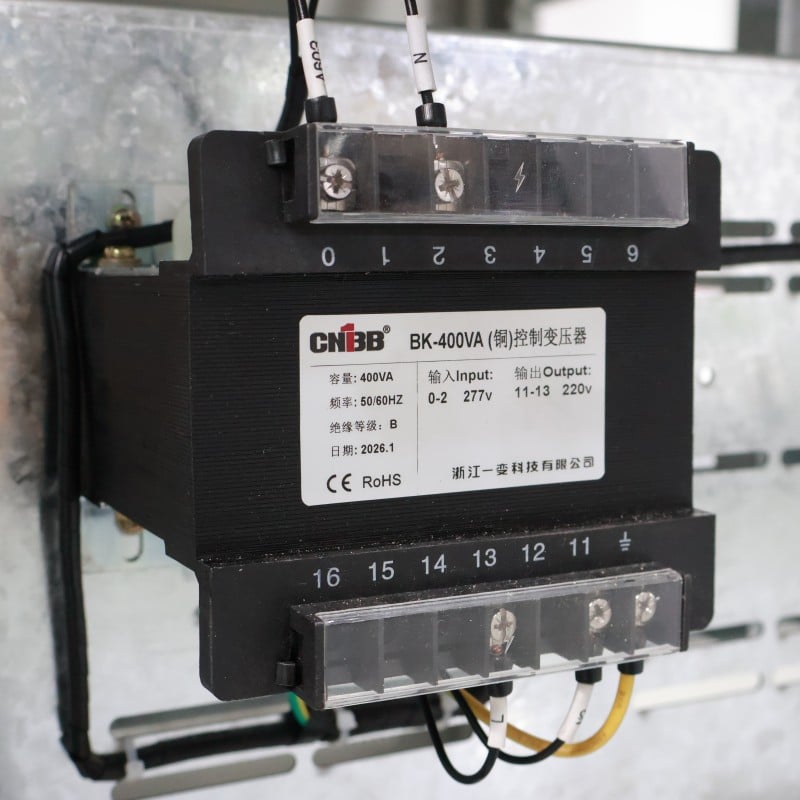

| Control Transformer | BK-400VA (Input/Output stable transformation) |
Enclosure Protection Class |
IP30 / IP40 (Customizable) |
Busbar Material |
High-conductivity TMY Copper Busbar |
Application Scenarios
Large-Scale Manufacturing Plants and Industrial Processing
Serving as the central primary power entry for heavy manufacturing factories, steel mills, and automotive assembly plants, this robust switchgear
efficiently manages the massive high-capacity electrical loads required by heavy-duty motor drives, smelting furnaces, and automated robotic systems.
It guarantees an uninterrupted power supply, safeguarding critical production cycles against sudden voltage sags or localized circuit failures.
Commercial Data Centers and IT Hubs
In mission-critical data processing centers and modern IT server hubs where continuous 24/7 uptime is paramount, the system provides exceptionally
reliable incoming power distribution. It stabilizes incoming grid electricity, protects sensitive server infrastructure from harmful electrical anomalies,
and supports the immense high-density power demands required by large-scale cloud computing facilities.
Municipal Infrastructure and Water Treatment Plants
Municipal utilities, large municipal water treatment facilities, sewage plants, and public pumping stations rely heavily on stable current distribution to
run continuous pumping and purification equipment. This heavy-duty cabinet ensures dependable electricity intake, withstanding harsh operational
environments while maintaining continuous, uninterrupted public service delivery across communities.
Renewable Energy Integration and Microgrids
As large-scale commercial solar power plants, wind energy farms, and regional microgrids feed massive amounts of generated electricity into broader
distribution networks, this specialized switchgear expertly manages complex incoming power flows. It stabilizes fluctuating renewable energy inputs,
facilitates safe grid synchronization, and supports seamless regional green energy transitions effectively.
