Overview

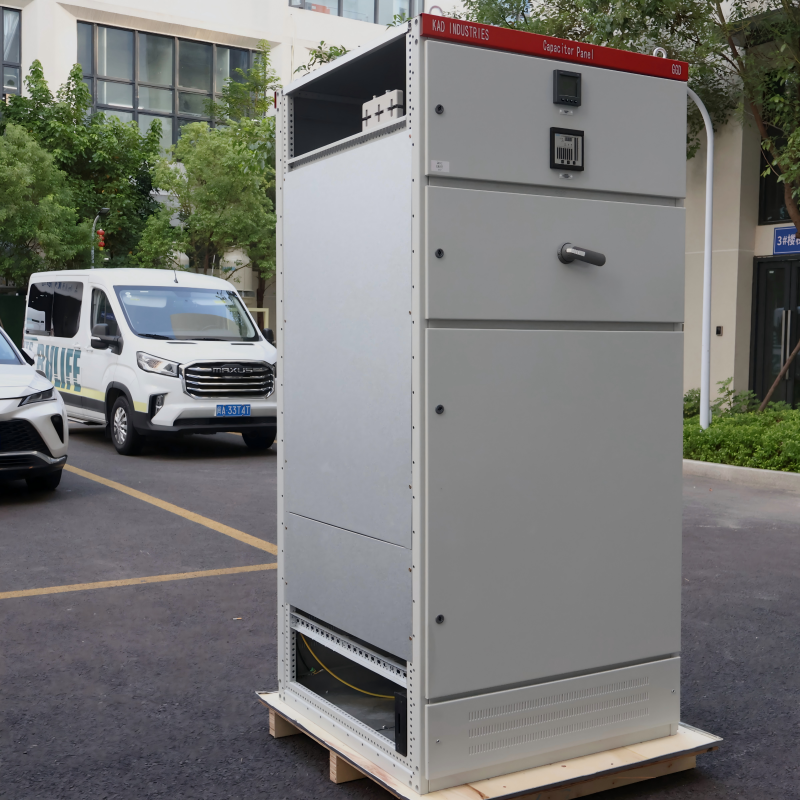

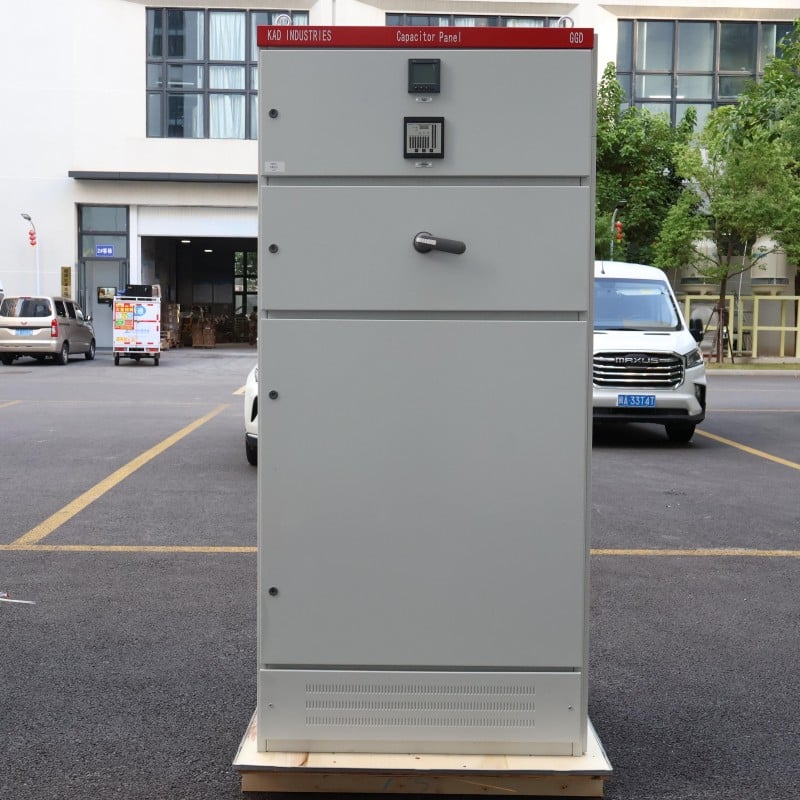

The custom GGD low voltage switchgear serves as an advanced reactive power compensation switchgear solution tailored specifically for
contemporary electrical infrastructure, industrial complexes, and large-scale commercial distribution systems. Built within a robust modular
framework, the 200kVAR power factor correction cabinet actively monitors complex grid parameters to eliminate phase lag, correct power
factor displacement, and curb utility financial penalties effectively. Each unit arrives completely pre-wired, factory-aged, and rigorously
tested for insulation strength and dielectric endurance under strict quality control protocols. By automatically modulating capacitive loads,
the system balances inductive demands from heavy machinery, protecting downstream transformers, preventing voltage drops, mitigating
harmonic interference, and significantly extending overall facility equipment lifespan across diverse operational environments.
Core Components and Features

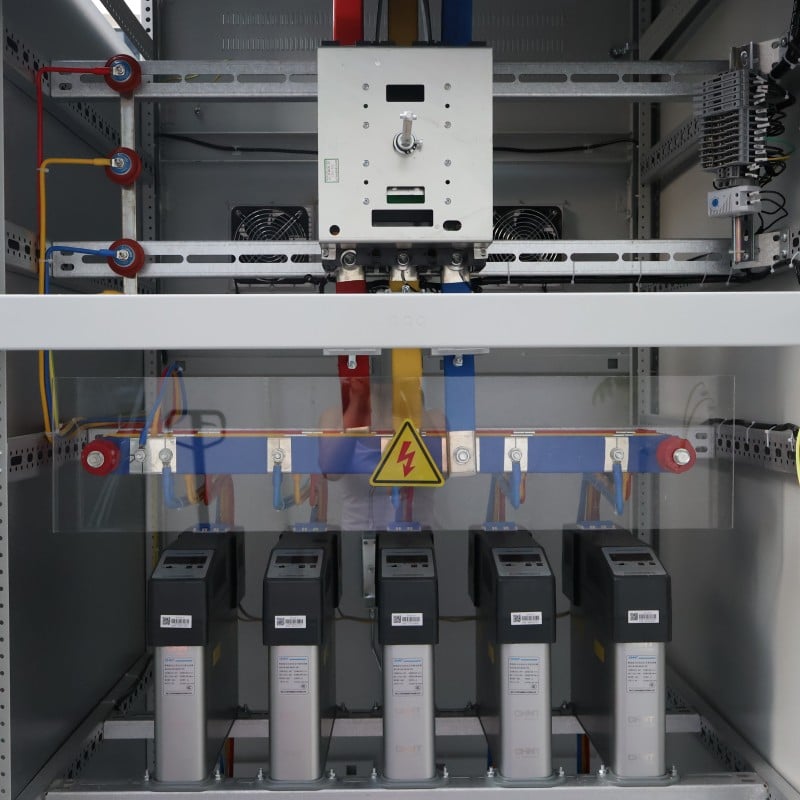

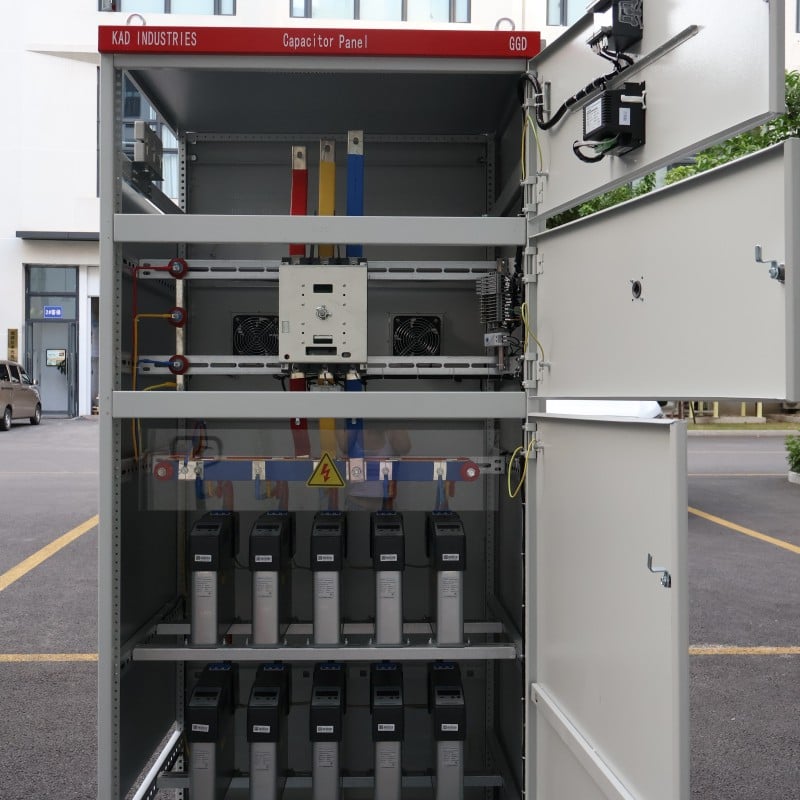

Inside the fully assembled capacitor compensation cabinet for factory operations, premium CHNT components ensure high operational

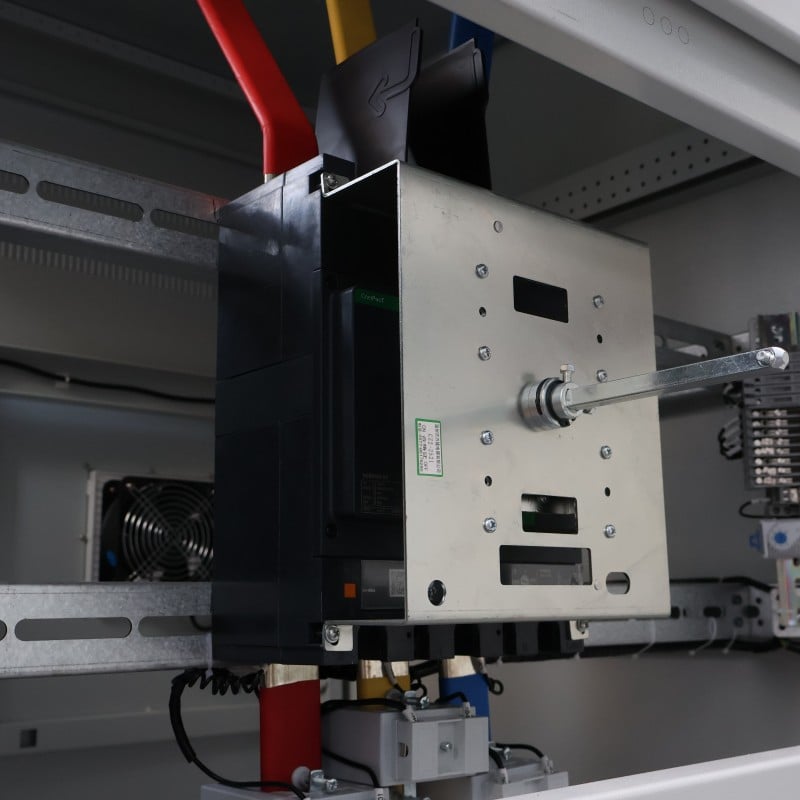

stability and precise switching capability during continuous industrial operations. The main incoming molded case circuit breaker
safeguards the entire electrical system against potential overloads, phase imbalances, and destructive short circuits. An intelligent

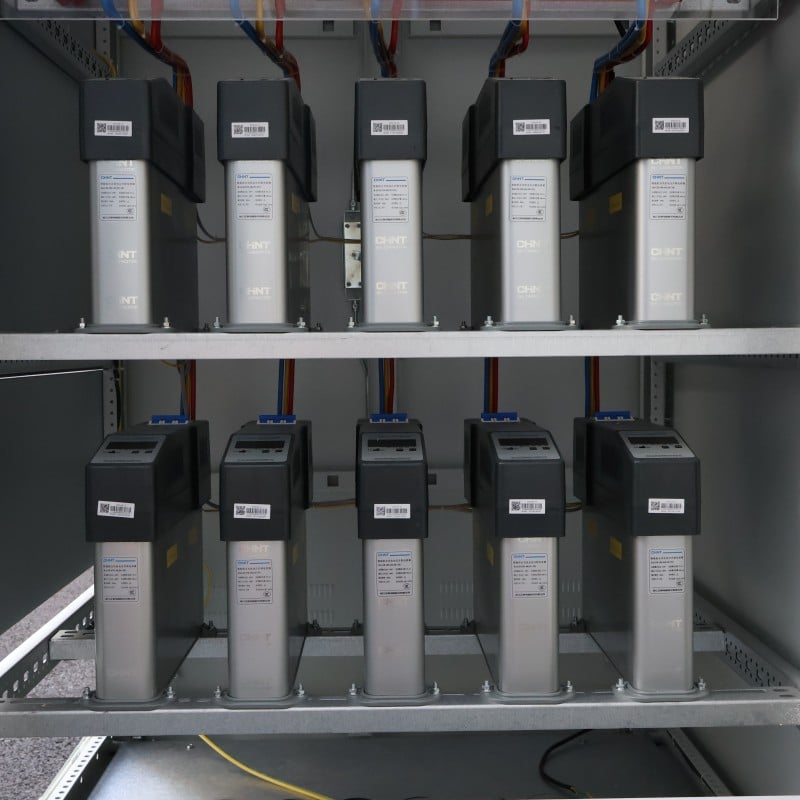

power factor controller continuously samples phase currents and voltages, sending real-time switching commands to advanced

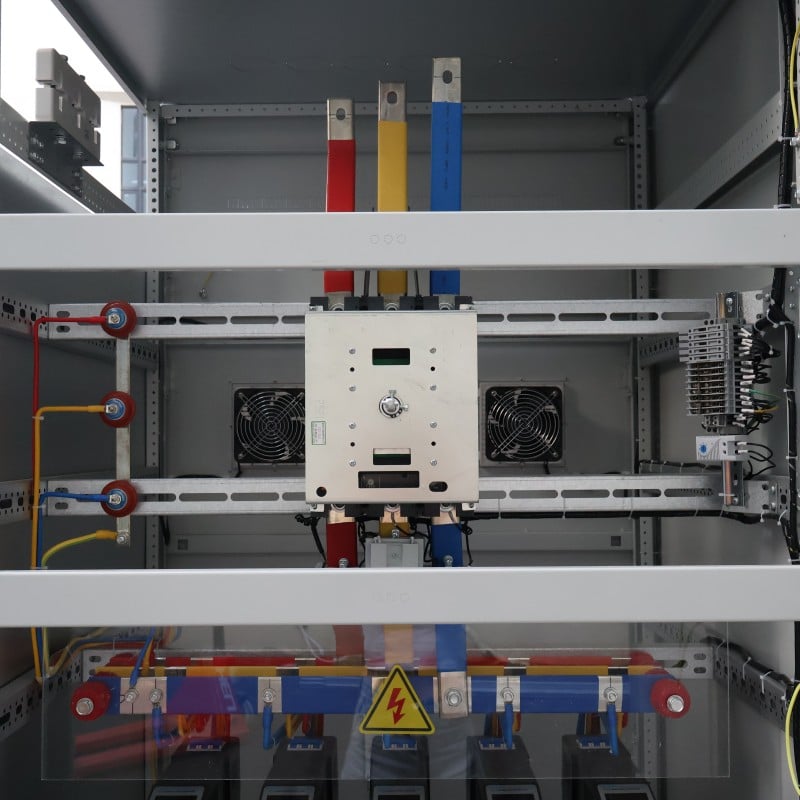

capacitor switching modules. Integrated copper busbars distribute power efficiently across internal circuits, while heavy-duty cooling
fans prevent thermal accumulation during peak operational cycles. Additionally, auxiliary terminal blocks, surge protective devices,
and protective barriers enhance internal circuit organization, operational safety, and maintenance accessibility for electrical technicians.
These integrated subsystems coordinate seamlessly to deliver automated reactive power compensation, ensuring optimal system
performance, reduced thermal stress, and maximum operational safety under heavy industrial load conditions.
Design and Compliance
Design:
Built upon a sturdy GGD structural framework, the enclosure features optimal louvered ventilation panels, secure multi-point locking
mechanisms, and segregated internal compartments designed to safely isolate high-voltage switching zones from sensitive control circuits
and diagnostic interfaces. Furthermore, the modular layout allows for straightforward future expansions, easy component replacements,
and optimal airflow management to prevent localized overheating. The robust steel construction undergoes rigorous anti-corrosion
treatments, electrostatic powder coating, and precise fabrication processes to withstand harsh industrial environments, mechanical
vibrations, and prolonged exposure to demanding ambient operating conditions without structural degradation.
Compliance:
Manufactured in strict accordance with international electrical codes, safety guidelines, and quality assurance protocols, the system incorporates
insulated barriers, clear hazard warning labeling, and comprehensive factory-tested dielectric and insulation properties to guarantee maximum
operator safety during active maintenance routines and daily operations. Each unit undergoes strict dielectric strength testing, insulation
resistance verification, and functional fault simulations before dispatch. This unwavering commitment to compliance ensures that facility
managers can integrate the equipment seamlessly into existing electrical safety frameworks, meeting all local and international regulatory
requirements for industrial power distribution installations.
Key Advantages
Significant Energy Savings and Efficiency
Automatically corrects power factor displacement to minimize reactive power consumption, directly lowering monthly industrial electricity
utility bills, reducing peak demand charges, and eliminating expensive utility reactive power surcharges. By optimizing the phase angle
between voltage and current, the system drastically reduces active power losses in transformers and distribution lines.
Enhanced System Capacity and Equipment Lifespan
Relieves thermal and electrical strain on upstream transformers and distribution cables, freeing up available kVA capacity to support additional
facility loads without requiring costly infrastructure upgrades. Simultaneously, it protects sensitive downstream machinery from premature
mechanical and electrical wear caused by voltage instability.
Smart Automated Control and Precision
Utilizes intelligent microprocessors for precise step switching, eliminating manual intervention, preventing over-compensation, and ensuring
smooth dynamic response under heavily fluctuating industrial loads. The advanced controller adapts in real-time to changing plant power
profiles, maintaining optimal power factor levels around the clock.
Plug-and-Play Reliability and Rapid Deployment
Delivered fully assembled and pre-tested to ensure rapid on-site installation, minimal operational downtime, and immediate readiness for
demanding industrial deployment environments worldwide. The pre-configured architecture significantly reduces on-site wiring complexity
and engineering labor costs during commissioning.
Parameter
Parameter Category |
Technical Specification |
Rated Working Voltage |
AC 380V / 415V (3-Phase 4-Wire) |
Rated Voltage |
380V / 415V AC (Three-Phase Four-Wire) |
Rated Frequency |
50Hz / 60Hz |
Standard Compensation Capacity |
Up to 200kVAR (Fully Customizable) |
Control Mode |
Automatic Smart Microprocessor Controller |
Enclosure Protection Class |
IP30 / IP40 (Indoor Standard) |
Core Switching Components |
CHNT Brand Contactors & Modules |
Application Scenarios
Industrial Manufacturing Plants and Heavy Industries
Deployed extensively in heavy assembly facilities, automotive manufacturing plants, and steel mills to stabilize heavy inductive motor loads,
eliminate harmonic distortions, and prevent critical grid voltage sags during peak manufacturing cycles. These robust compensation systems
ensure reliable power delivery to high-draw machinery, robotic welding lines, and large-scale conveyor networks.
Commercial Buildings and High-Rise Complexes
Installed in large shopping malls, corporate office towers, and data centers to optimize central HVAC chiller systems, elevator motor operations,
and comprehensive lighting loads for maximum energy conservation. The units maintain stable voltage profiles across multi-story commercial
infrastructures, preventing equipment trips and reducing overall facility energy overheads.
Renewable Energy Infrastructure and EV Charging Stations
Integrated seamlessly into large-scale photovoltaic solar energy farms and commercial electric vehicle charging depots to maintain strict grid
power factor compliance under highly variable generation and consumption profiles. They stabilize fluctuating DC-to-AC inverter outputs and
high-capacity fast-charging demand spikes efficiently.
Municipal Water Treatment and Pumping Facilities
Utilized to offset massive reactive power draws generated by continuous-duty municipal sewage pumps, large-scale water circulation systems,
and fluid processing equipment across municipal infrastructure networks. These installations guarantee uninterrupted pumping operations,
lower municipal energy expenses, and enhance the longevity of critical municipal utility assets.
