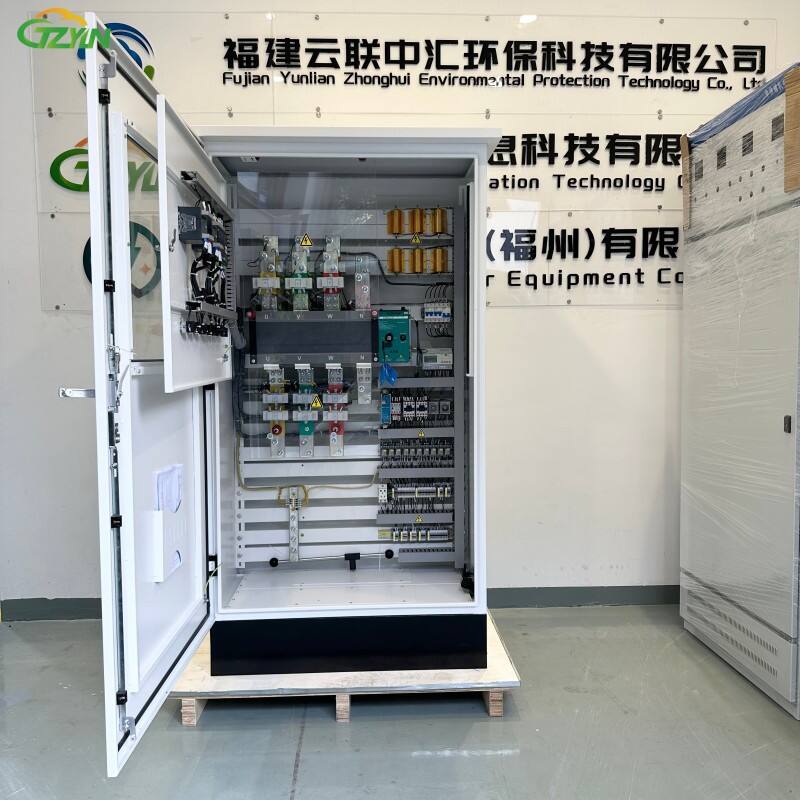

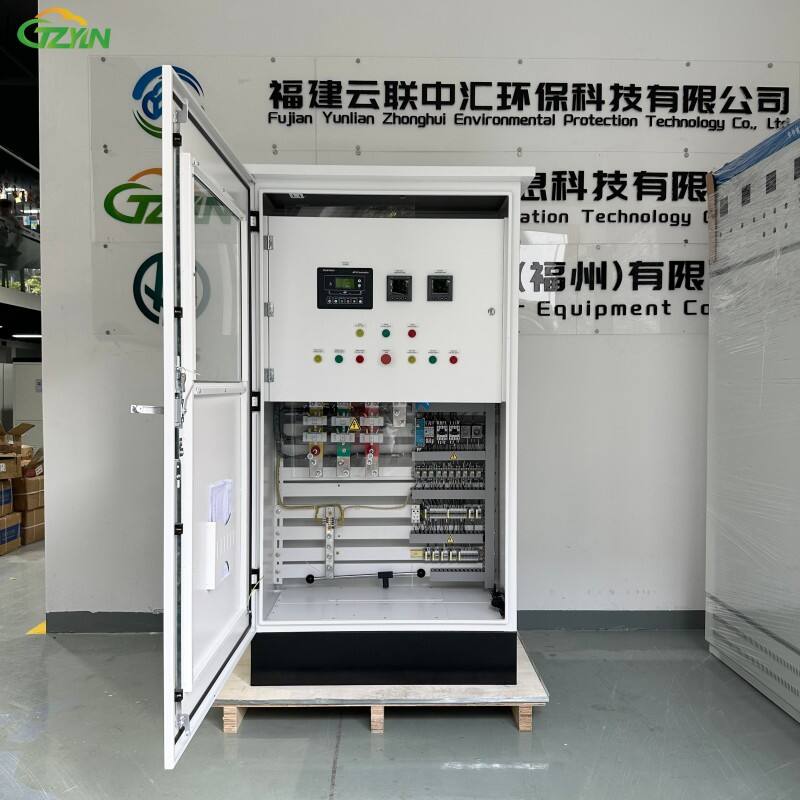

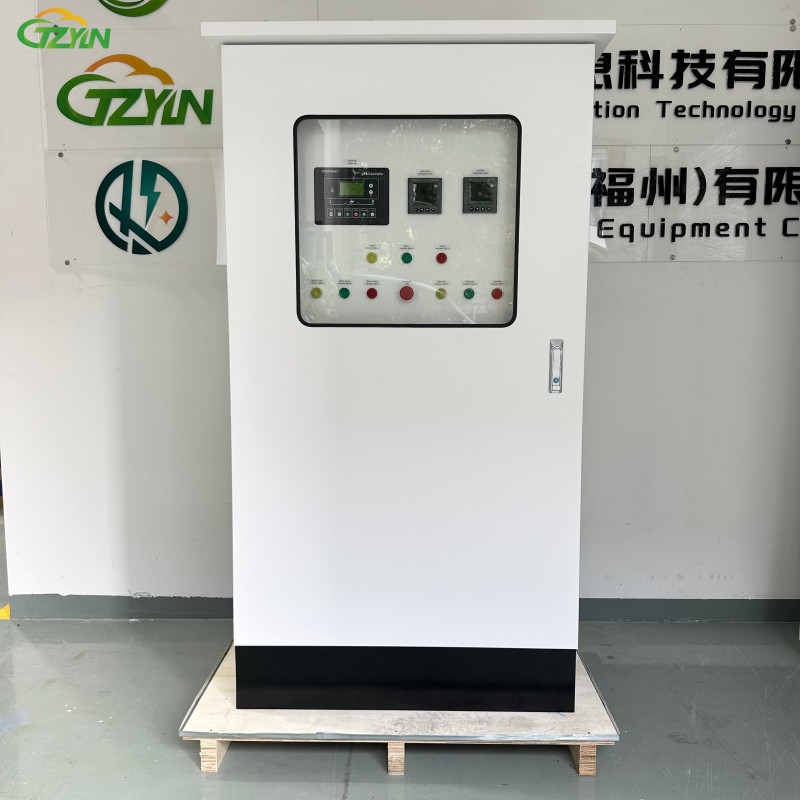

220V Dual Power ATS Cabinet: Power Transition for Mission-Critical Reliability

What is an ATS Cabinet?

The ATS (Automatic Transfer Switch) Cabinet is an electro-mechanical device engineered to

automatically switch electrical loads between two power sources—typically a utility grid and a backup generator—within milliseconds.

When the primary power source fails or fluctuates beyond safe limits, the ATS Cabinet instantly activates

the secondary power source, then seamlessly reverts to the main supply once stability is restored.

This "fail-safe" mechanism eliminates manual intervention, reduces downtime, and minimizes equipment damage risks.

Core Features & Competitive Edge

Lightning-Fast Switching

With a switching time of <80ms, the ATS Cabinet ensures zero interruption to sensitive equipment like servers,

medical devices, or industrial machinery. This is 10x faster than manual switches, preventing costly data loss or process halts.

Intelligent Monitoring & Control

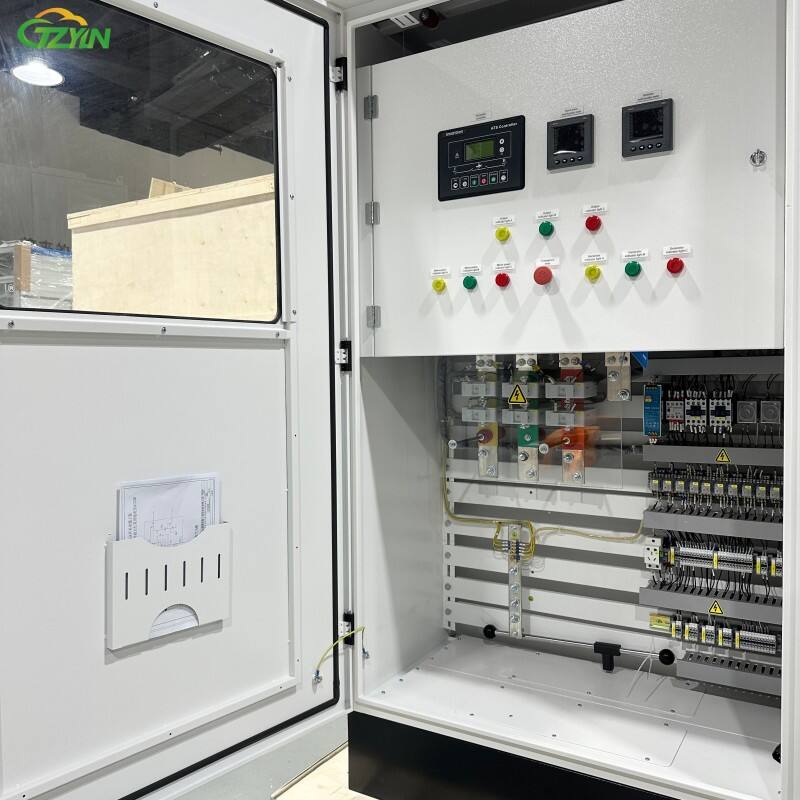

Real-Time Diagnostics: HMI (Human-Machine Interface) panels display voltage, current, frequency, and power quality metrics for both sources.

Customizable Logic: Set priorities (e.g., "Utility First" or "Generator Backup") and adjust parameters like start-up delays, cooling periods,

and voltage thresholds via touchscreen controls.

Remote Access: Optional IoT integration allows remote monitoring and troubleshooting via mobile apps or cloud platforms.

Military-Grade Safety

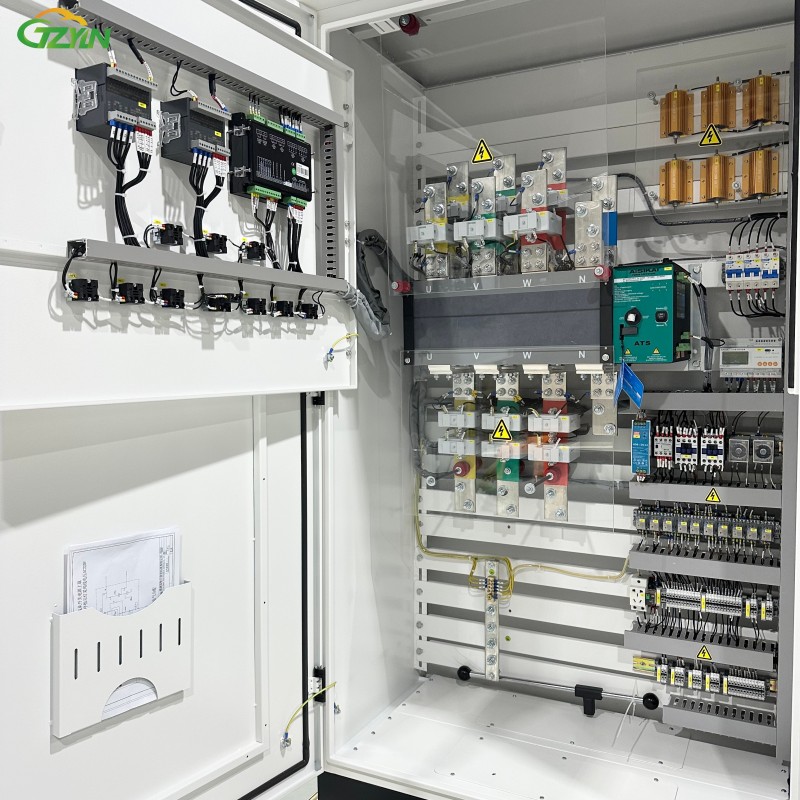

Double Interlock System: Mechanical and electrical interlocks prevent accidental dual-power connections, eliminating arc-flash risks.

Protection Modules: Over/under-voltage, phase-loss, and overload alarms with automatic shutoff safeguard connected devices.

Scalable & Modular Design

Wide Current Range: Cabinets support 32A–6000A loads, accommodating small businesses to industrial complexes.

Flexible Configuration: Compatible with diesel/gas generators, UPS systems, or renewable energy sources like solar inverters.

User-Friendly Operation

Manual Override: Emergency handle for forced switching during maintenance.

Plug-and-Play Setup: Pre-wired modules reduce installation time by up to 40% compared to DIY systems.

Technical Specifications

Use Cases That Demand ATS

Retail & Banking: Prevent revenue loss from POS system downtime or ATM failures.

Agriculture: Keep irrigation pumps and livestock ventilation running during grid outages.

Telecom Towers: Ensure 24/7 connectivity in remote areas with unreliable grids.

Residential Complexes: Power elevators, common areas, and security systems during blackouts.

Manufacturing Plants: Avoid costly production line stops and equipment damage.
